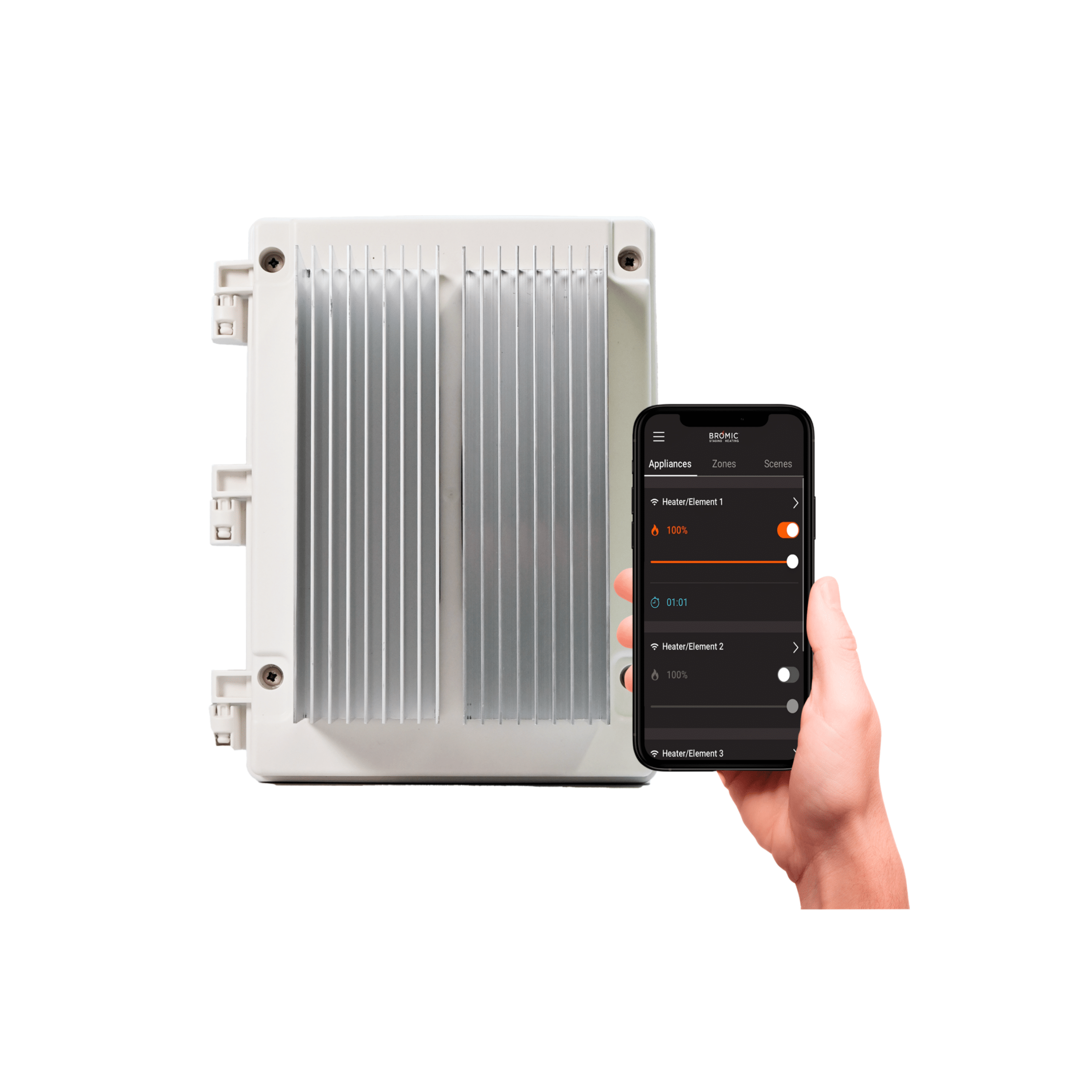

Bromic Affinity Smart-Heat Dimmer Controllers

$762.00

Channel:

1 2 5

Variant

$762.00

Bromic Affinity Smart-Heat Dimmer Controllers

Enjoy custom comfort with the Affinity Dimmer Series. Suitable for Bromic Platinum and Tungsten Collection electric heaters, the Affinity Dimmer Series comes in 1 and 2 channel input options – with each channel controlling up to 6000W of power. Using the Bromic Heating app, instantly and precisely adjust heat output down to 1% increments and other unique scenes and settings for ideal outdoor experiences. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.

3-Phase 5 Channel model is complete with an included expansion board allowing for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration

Specifications

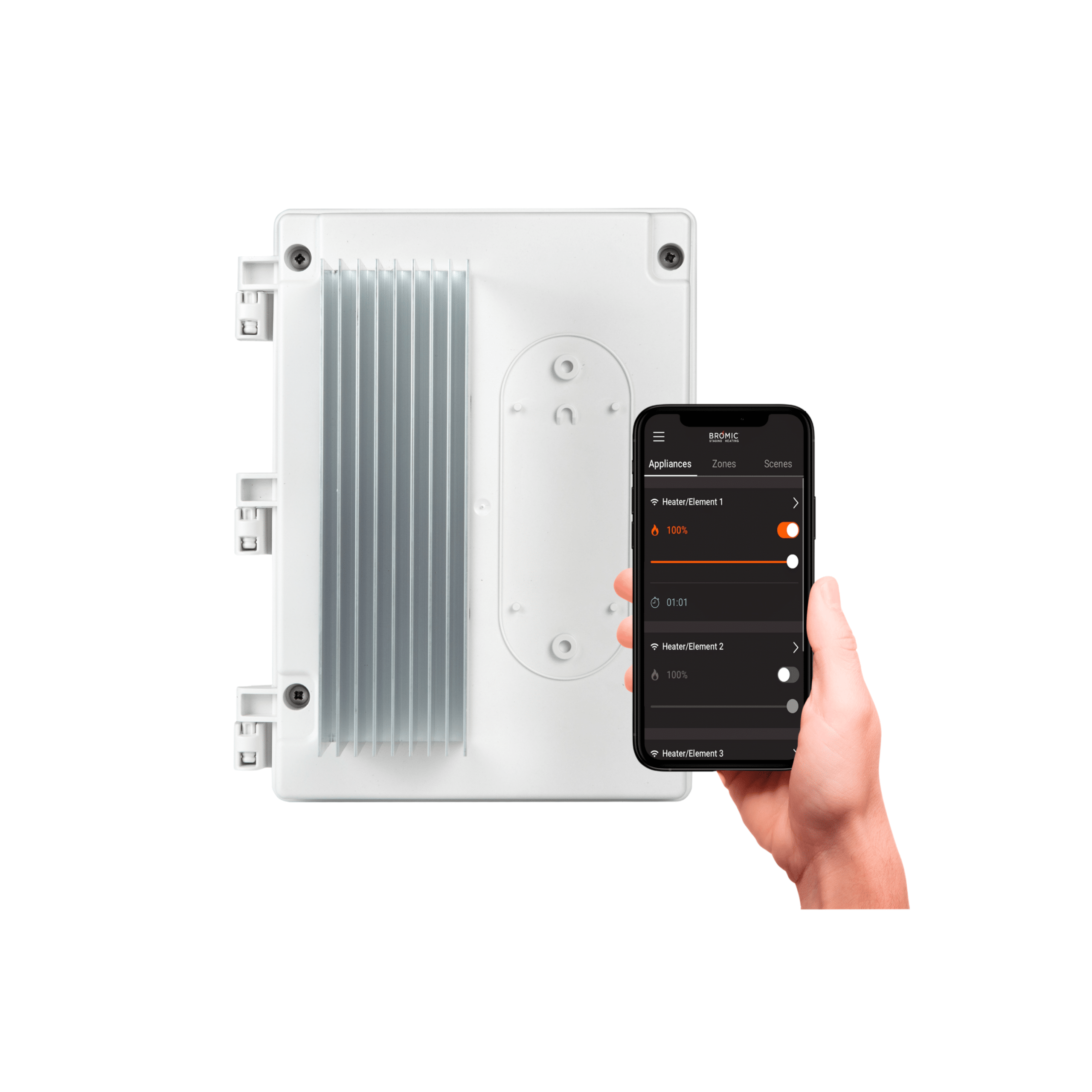

Affinity Dimmer – 1 Channel

Part Number: BH3130061
Number of Channels: 1 CH
Voltage-Max Capacity Per Channel:
- 208-277V – 6kW
Operating Temperature Range: -4°F to +86°F
Non-Operating Temperature Range: -22°F to +158°F
Protection Rating: IP54
Dimensions: 11.4 x 8.0 x 6.4”
Weight: 3.5 lbs
WiFi Connectivity: 2.4GHz
Warranty: 1 Year
Approval Certification: UL 60730-1, CAN/CSA E60730-1
Heater Compatibility: Platinum Electric & Platinum Gas, Tungsten Electric & Tungsten Gas

Affinity Dimmer – 2 Channels

Part Number: BH3130062
Number of Channels: 2 CH
Voltage-Max Capacity Per Channel:
- 208-277V – 6kW
Operating Temperature Range: -4°F to +86°F
Non-Operating Temperature Range: -22°F to +158°F
Protection Rating: IP54
Dimensions: 11.4 x 8.0 x 6.4”
Weight: 5.3 lbs
WiFi Connectivity: 2.4GHz
Warranty: 1 Year
Approval Certification: UL 60730-1, CAN/CSA E60730-1
Heater Compatibility: Platinum Electric & Platinum Gas, Tungsten Electric & Tungsten Gas

Affinity Dimmer – 5 Channels

Part Number: BH3130063
Number of Channels: 5 CH
Voltage-Max Capacity Per Channel:
- 3N-220/380V – 6kW
- 3N-230/400V – 6kW
- 3N-240/415V – 6kW
- 3N-277/480V – 6kW
- 3-120/208V – 6kW
Operating Temperature Range: -4°F to +86°F
Non-Operating Temperature Range: -22°F to +158°F
Protection Rating: IP54
Dimensions: 19.7 x 13.4 x 10.0”
Weight: 27.6 lbs
WiFi Connectivity: 2.4GHz
Warranty: 1 Year
Approval Certification: UL 60730-1, CAN/CSA E60730-1
Heater Compatibility: Platinum Electric & Platinum Gas, Tungsten Electric & Tungsten Gas
