Bromic Affinity Smart-Heat Eclipse Controllers

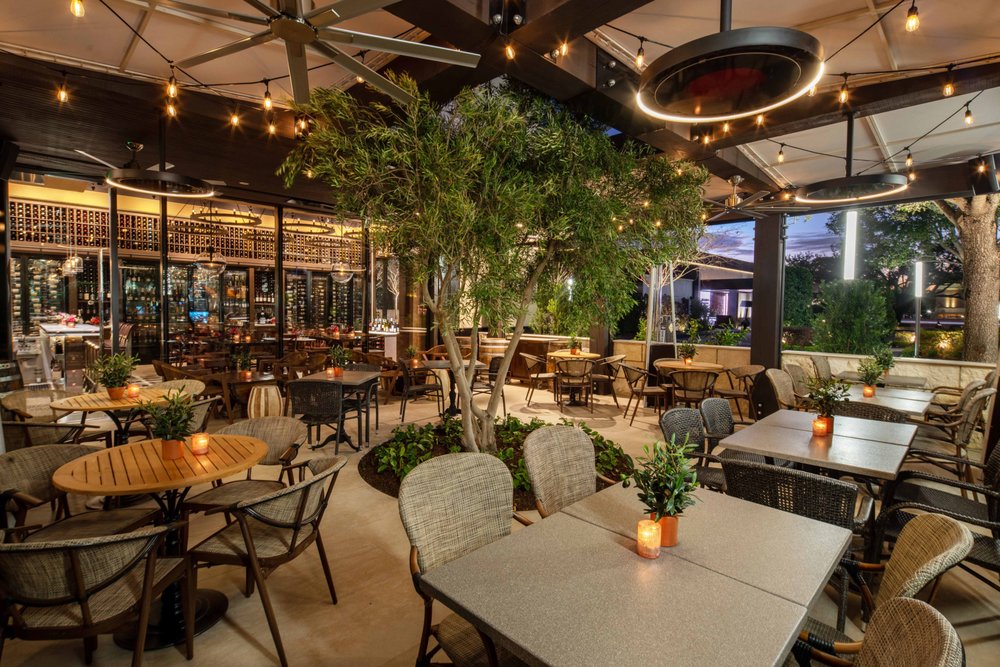

Created for our Eclipse Collection, the Affinity Eclipse Series offers 1 and 5 channel input options for our fixed Eclipse Pendant outdoor heater. Using the Bromic Heating app, have complete incremental control over not just the heat, but the LED light rail output as well, creating the perfect ambience – every time. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.

Specifications

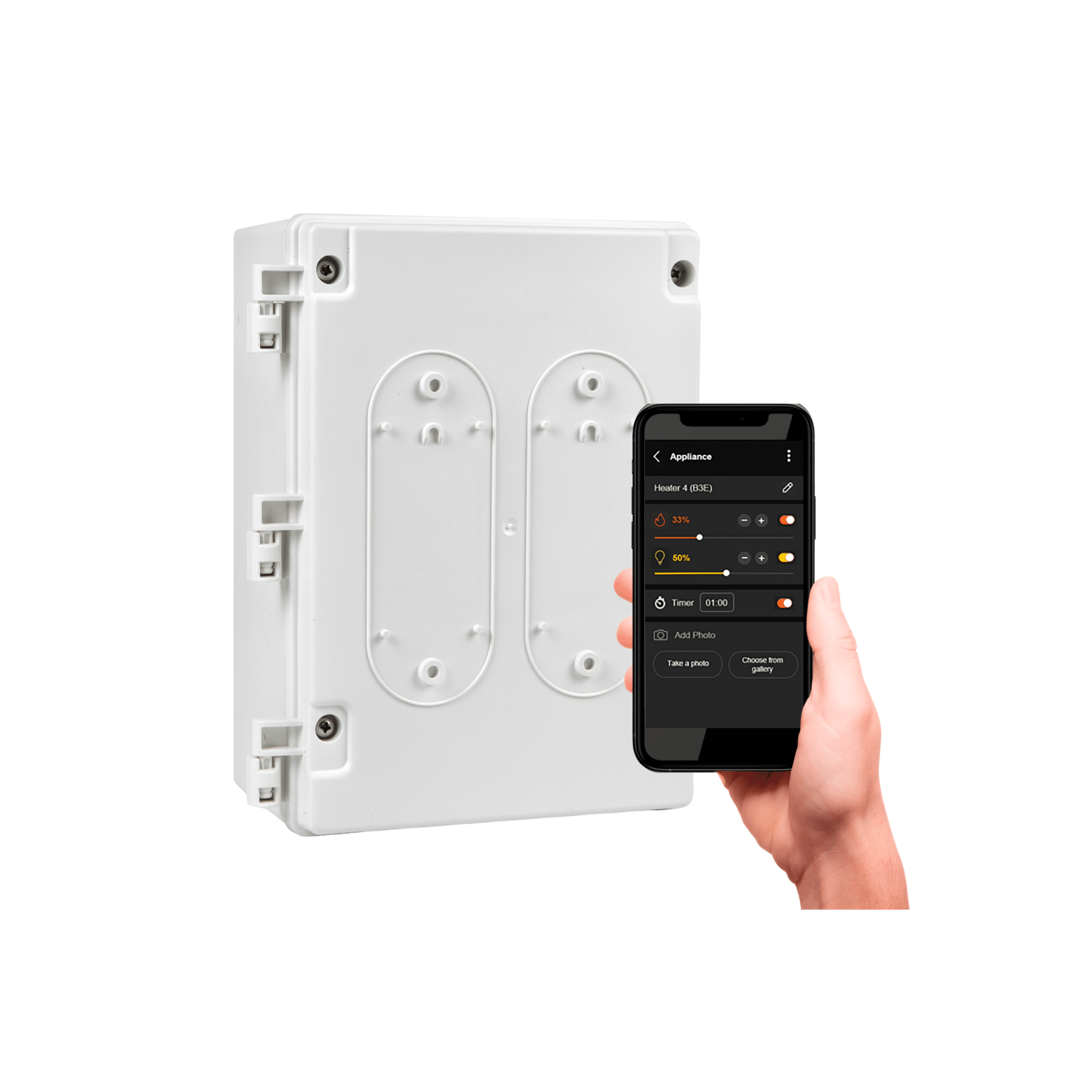

Affinity Eclipse – 1 Channel

• Part Number: BH8380051

• Number of Channels: 1 CH

• Voltage-Max Capacity Per Channel:

  • 220-240V – 4kW

• Operating Temperature Range: -4°F to +86°F

• Non-Operating Temperature Range: -22°F to +158°F

• Protection Rating: IP54

• Dimensions: 11.4 x 8.0 x 4.4”

• Weight: 3.5 lbs

• WiFi Connectivity: 2.4GHz

• Warranty: 1 Year Parts

• Approval Certification: UL 60730-1, CAN/CSA E60730-1

• Heater Compatibility: Eclipse Electric

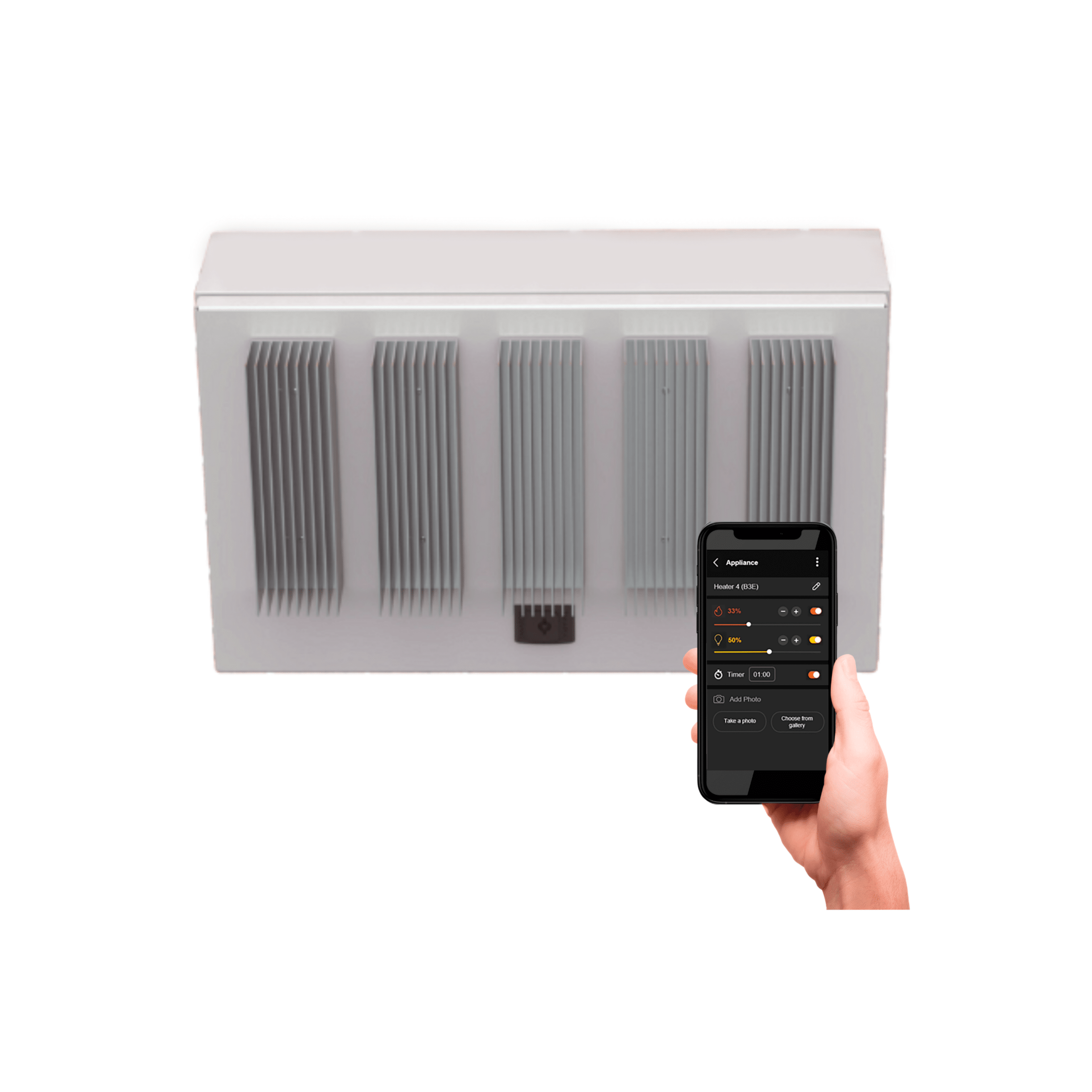

Affinity Eclipse – 5 Channels

• Part Number: BH8380055

• Number of Channels: 5 CH

• Voltage-Max Capacity Per Channel:

  • 3N-220/380V – 6kW

  • 3N-230/400V – 6kW

  • 3N-240/415V – 6kW

  • 3N-277/480V – 6kW

  • 3-120/208V – 6kW

• Operating Temperature Range: -4°F to +86°F

• Non-Operating Temperature Range: -22°F to +158°F

• Protection Rating: IP54

• Dimensions: 19.7 x 13.4 x 10.0”

• Weight: 33.1 lbs

• WiFi Connectivity: 2.4GHz

• Warranty: 1 Year Parts

• Approval Certification: UL 60730-1, CAN/CSA E60730-1

• Heater Compatibility: Eclipse Electric

Dimensions

Eclipse 1 Channel Dimensions

Eclipse 5 Channel Dimensions

Mounting Options

Resources Download's

Bromic Smart Heat Control Instruction Manual
Spec Sheet
