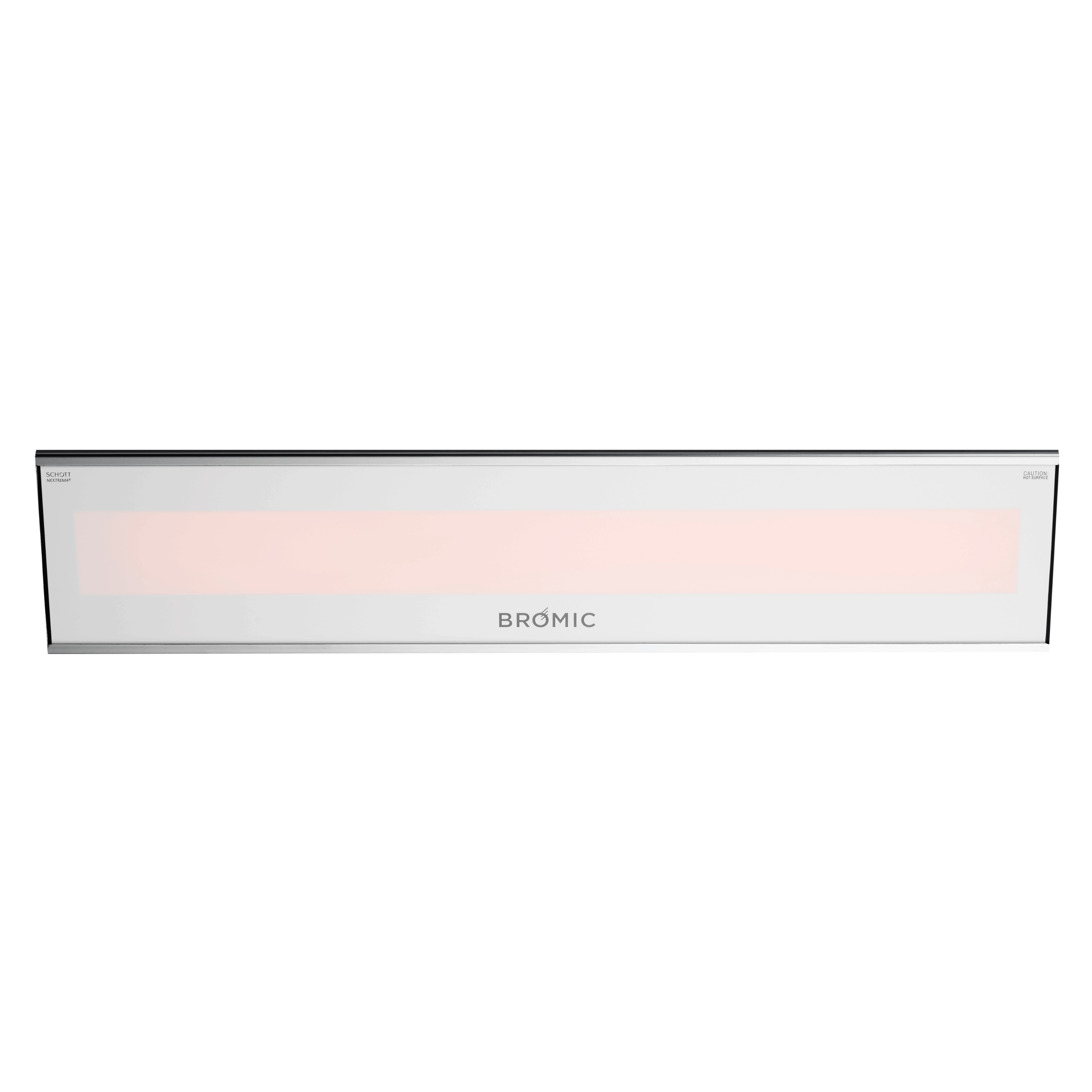

Bromic Platinum Smart-Heat Electric Marine

To counteract the hurdles of installing an outdoor heater near the coast where standard stainless steel can rust and deteriorate, Bromic engineered the Platinum Electric Marine heater series.

Built to withstand corrosive environments with high grade materials, a fully enclosed heater body to protect internal elements, and an easy to maintain, ceramic-glass surface, this exceptional heater is backed by an industry-leading 5-year warranty offering peace of mind that this heater is built to last. (5 year warranty is for land based applications only does not cover installations on marine vessels).

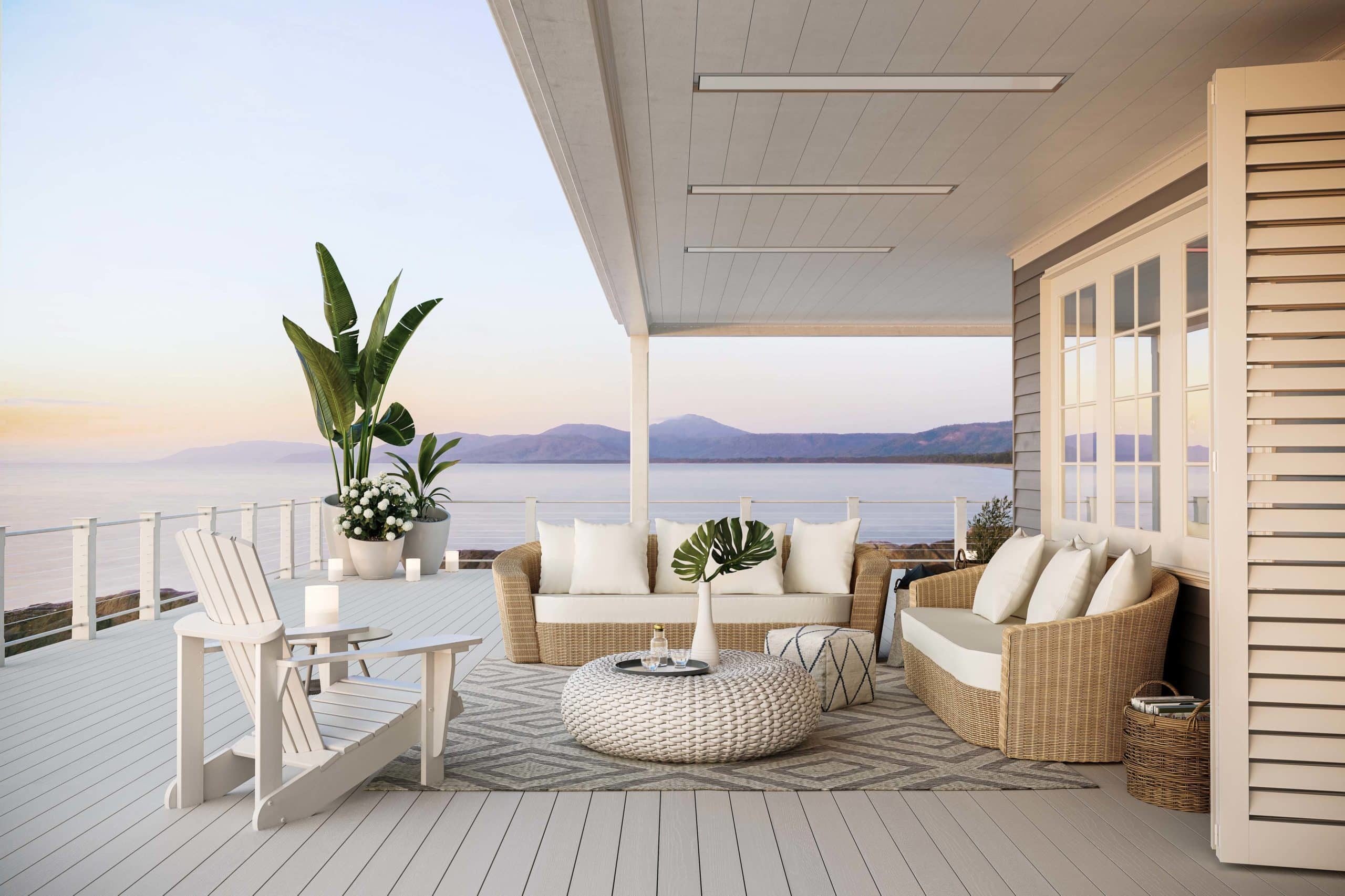

Available in a white or black finish with a variety of mounting options including wall, ceiling, and recessed, the Platinum Electric Marine heater is the ideal solution to enrich the comfort experience of owners of coastal residences and superyachts as well as guests on cruise ships.

Key Features

• High Performance Stainless-Steel – Premium 316 grade stainless-steel, perfect for marine and coastal environments
• Adjustable Mounting Brackets – For precise, efficient, directional heat distribution
• Compact & Elegant Design – Integrates seamlessly with design-focused spaces, available in easy-to-clean black or white finish with minimized light emissions
• Tinted Glass-Ceramic Fascia – Distributes heat evenly while reducing visible light for a more pleasant ambiance
• Slim-Line Design – Requires minimal ceiling recess clearance for flush-mounting, maintaining sleek aesthetics
• Set and Forget – Simple, intuitive single-switch operation with smart system compatibility
• Sealed Element – Corrosion-resistant sealed compartment with thin-film elements, ensuring durability in harsh marine environments


Specifications

2300W Marine Series – Electric

• Fuel Type: Electric

• Color: Black | White

• Weight: 17 lbs

• Model #:

  • BH0320015 (Black)

  • BH032001 (White)

• Heat Area: 65 ft²

• Rated Current:

  • 220-240V / 9.6A

  • 208V / 11.1A

• Minimum Floor Clearance:

  • Wall: 72”

  • Ceiling: 96”

• Warranty:

  • 5 years (land-based applications)

  • 3 years (marine vessels)

---

3400W Marine Series – Electric

• Fuel Type: Electric

• Color: Black | White

• Weight: 22 lbs

• Model #:

  • BH0320016 (Black)

  • BH0320018 (White)

• Heat Area: 108 ft²

• Rated Current:

  • 220-240V / 14.2A

  • 208V / 16.3A

• Minimum Floor Clearance:

  • Wall: 72”

  • Ceiling: 96”

• Warranty:

  • 5 years (land-based applications)

  • 3 years (marine vessels)

---

4500W Marine Series – Electric

• Fuel Type: Electric

• Color: Black | White

• Weight: 33 lbs

• Model #:

  • BH3622002 (Black)

  • BH3622003 (White)

• Heat Area: 143 ft²

• Rated Current:

  • 220-240V / 18.8A

  • 208V / 21.6A

• Minimum Floor Clearance:

  • Wall: 72”

  • Ceiling: 96”

• Warranty:

  • 5 years (land-based applications)

  • 3 years (marine vessels)

---

Control Options

• Affinity On/Off: Available on 2300W, 3400W, and 4500W Marine Series

• Affinity Dimmer: Available on 2300W, 3400W, and 4500W Marine Series

• Manual Wall Switch: Available on 2300W, 3400W, and 4500W Marine Series

---

Available in varying voltages: 220/240V and 208V.

Dimensions

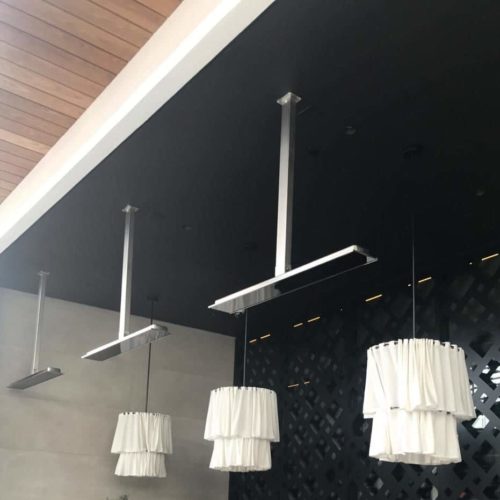

Mounting Options



Heat Blooms

Resources Download's

Platinum Smart-Heat Electric Instruction Manual
Platinum Smart-Heat Electric Instruction Manual 4.5W
Spec Sheet
