Modern Flames Orion Multi Electric Fireplace

The Orion Multi offers ultra-realistic flames with a 3-sided view and HELIOVISION™ Multi-Dimensional Flame Technology. Customize your ambiance with multiple flame styles, colors, and multicolor ember bed lighting. This smart electric fireplace provides cozy heat, ambient crackling sounds, and convenient app, touch, or remote controls. Safe, ventless, and designed for built-in or wall-mounted installations.

Key Features

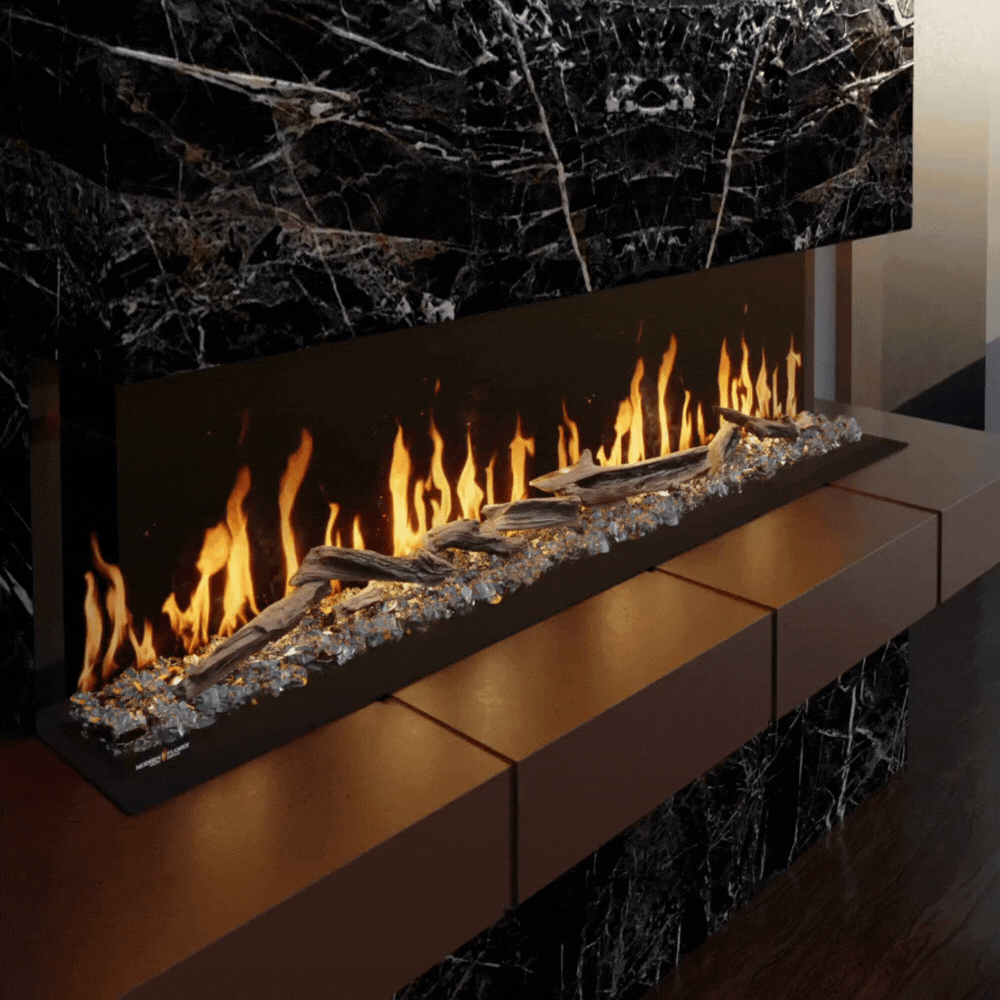

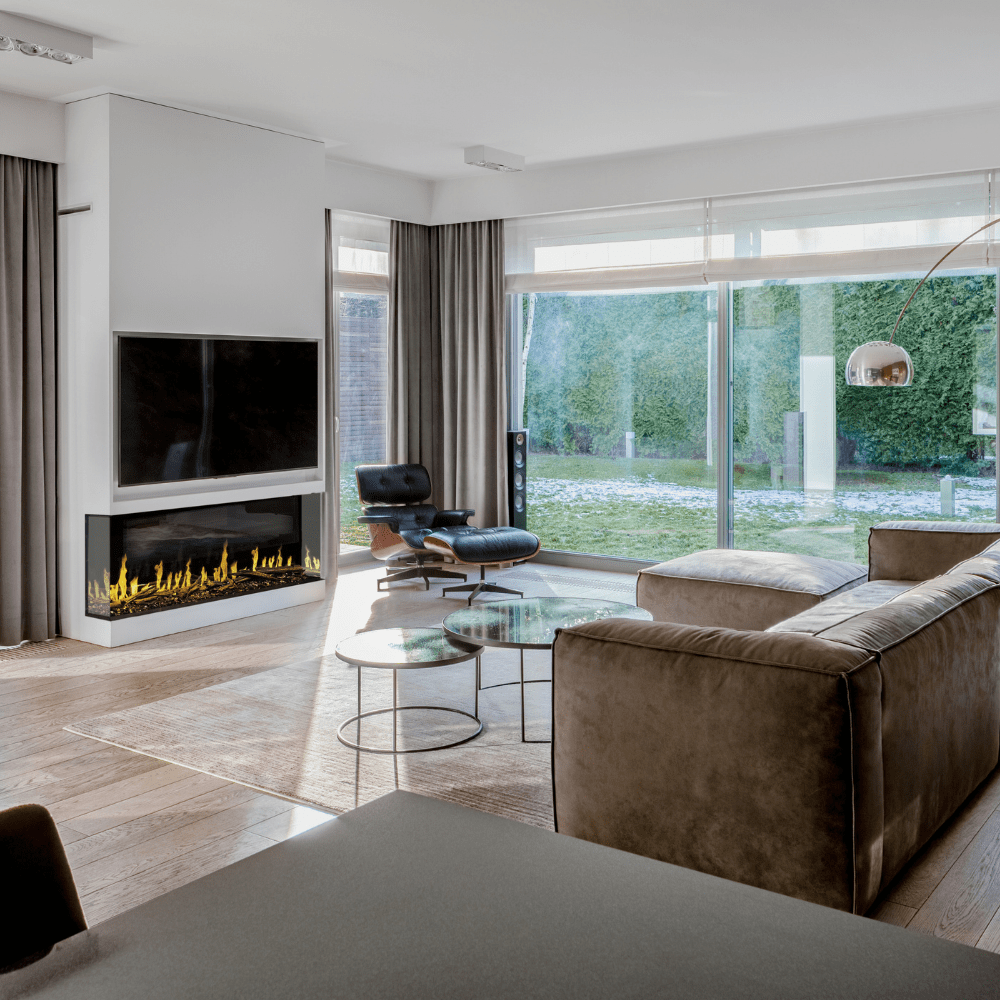

• 3-sided indoor electric fireplace with front, left corner, right corner, or bay installation

• HELIOVISION™ Multi-Dimensional Flames: 3 flame patterns (Hybrid, Wood, Gas) with 6 color options each

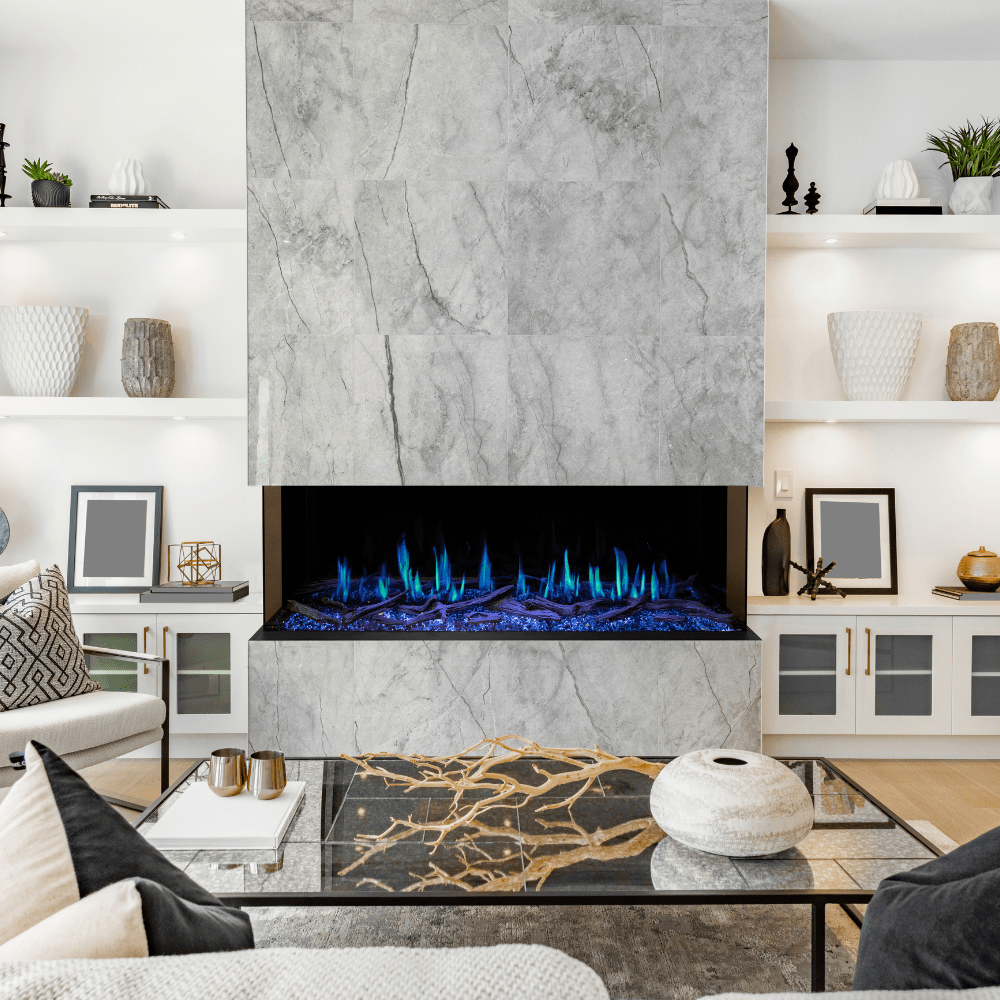

• Multicolor ember bed and downlighting to enhance mood

• Plays ambient crackling sounds for a realistic fireside experience

• Hardwired operation for high heat output (5,000–10,000 BTUs)

• Smart controls via Modern Flames app, touch controls, or remote

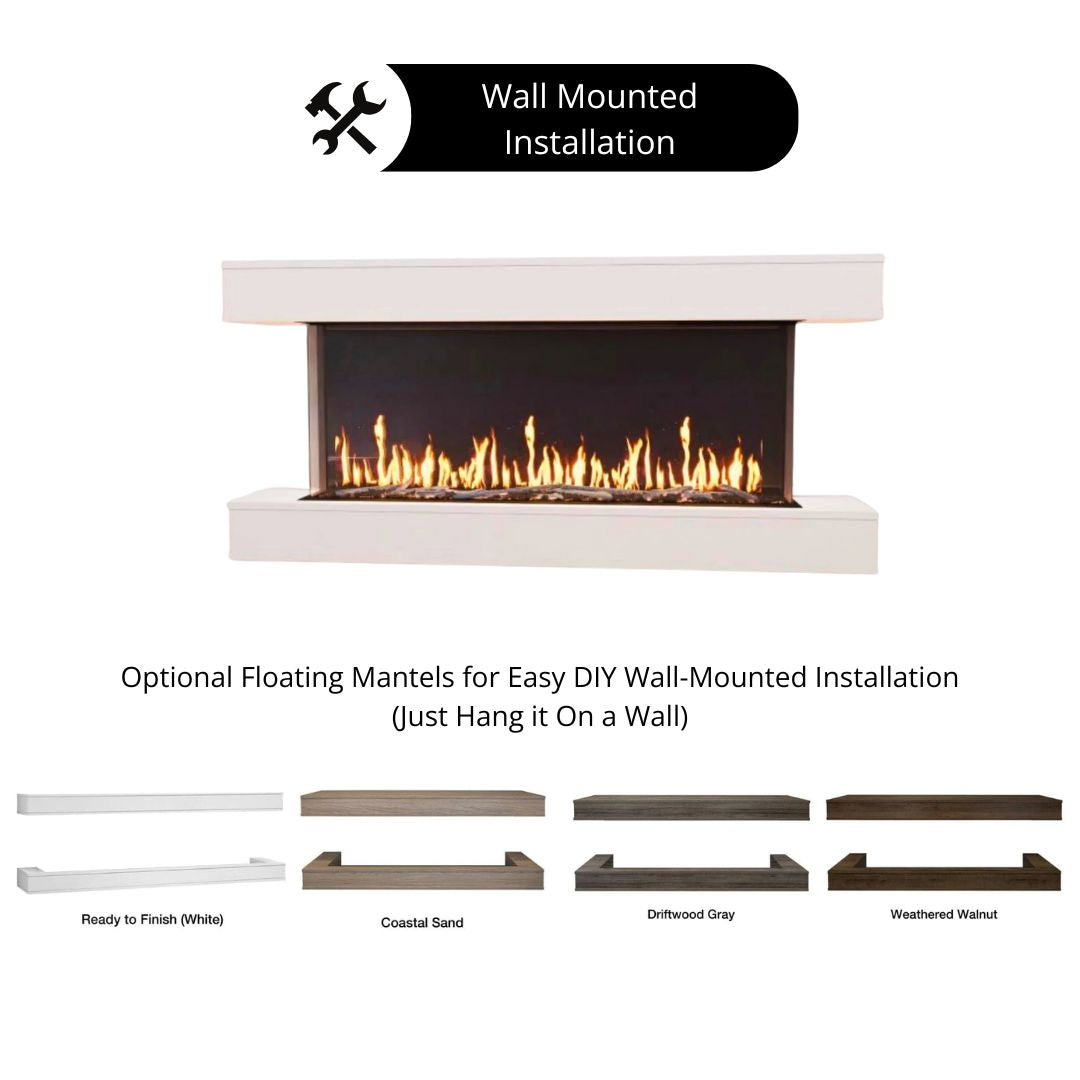

• Fully or partially recessed installation (wall-mount or built-in)

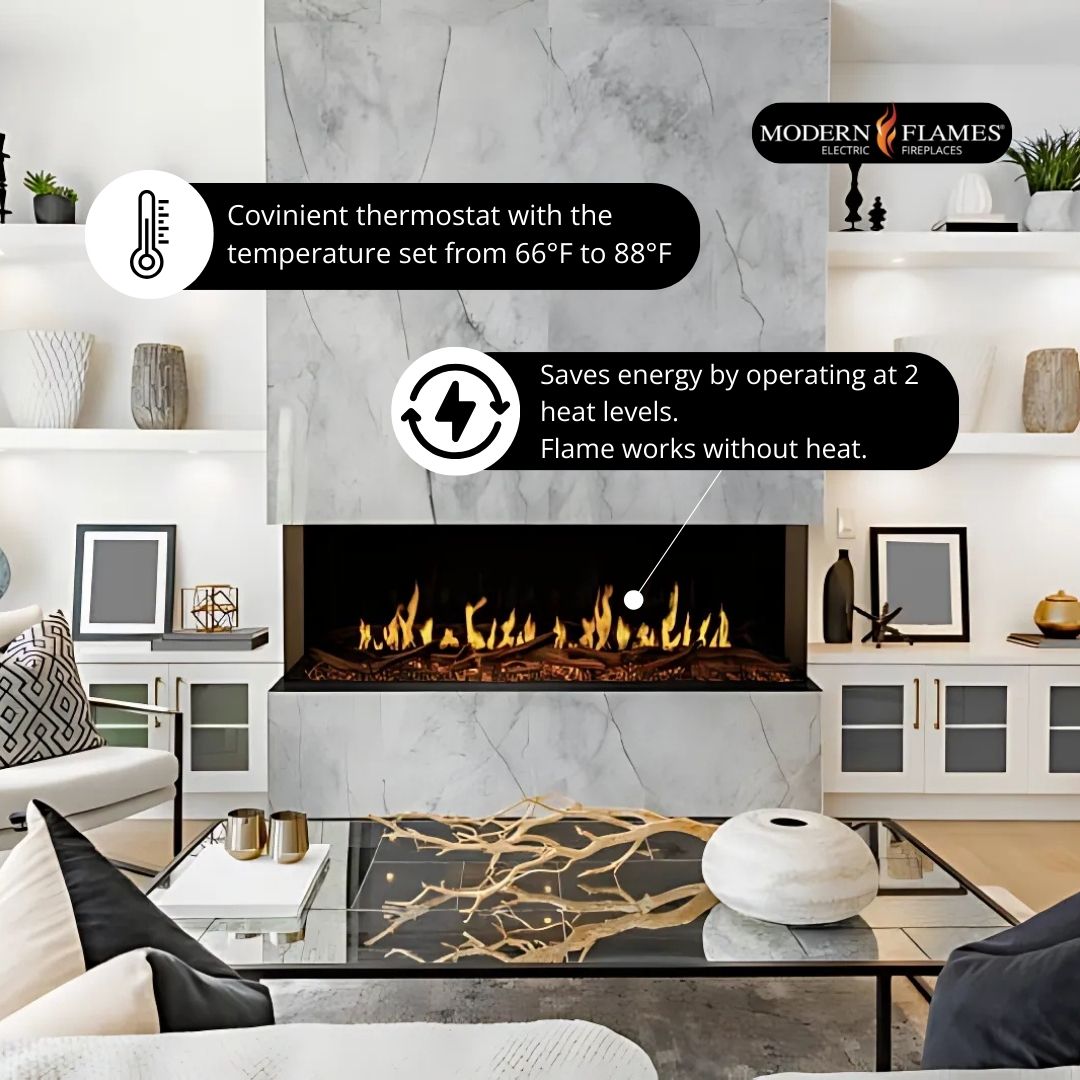

• Adjustable thermostat: 66°F–88°F with timer function

• CSA certified, requires dedicated 20 Amp breaker

• Available in 5 sizes: 52", 60", 76", 100", 120"

Specifications

• Heating Area: 450 sq. ft

• Overall Dimensions (H × W × D):

  • 52": 24.31" × 51.50" × 9.44"

  • 60": 24.31" × 60" × 9.44"

  • 76": 24.31" × 75.75" × 9.44"

  • 100": 24.31" × 100" × 9.44"

  • 120": 24.31" × 124.38" × 9.44"

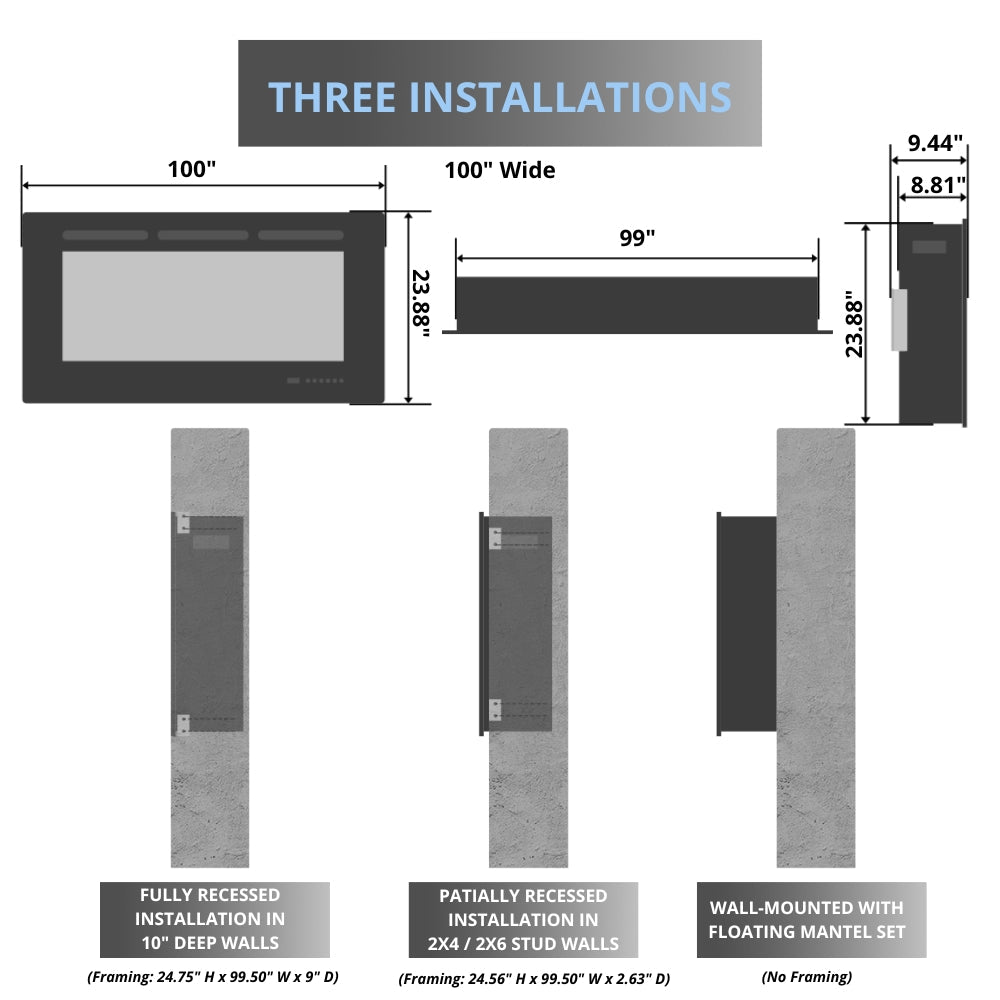

• Fully Recessed Framing Dimensions (H × W × D):

  • 52": 24.75" × 51" × 9"

  • 60": 24.75" × 59.50" × 9"

  • 76": 24.75" × 75.25" × 9"

  • 100": 24.75" × 99.50" × 9"

  • 120": 24.75" × 124" × 9"

• Partially Recessed Framing Dimensions (H × W × D min.):

  • 52": 24.56" × 50.94" × 2.63"

  • 60": 24.56" × 59.44" × 2.63"

  • 76": 24.56" × 75.19" × 2.63"

  • 100": 24.56" × 99.50" × 2.63"

  • 120": 24.56" × 123.81" × 2.63"

• Viewing Area (H × W):

  • 52": 18.44" × 50.12"

  • 60": 18.44" × 58.63"

  • 76": 18.44" × 74.44"

  • 100": 18.44" × 98.75"

  • 120": 18.44" × 123"

• Heat Output: 5,000 BTU (low) / 10,000 BTU (high)

• Warranty: 5-Year

What’s in the Box

• Electric Fireplace Assembly

• Hardware Kit

• Remote Control

• Wall Mount Bracket

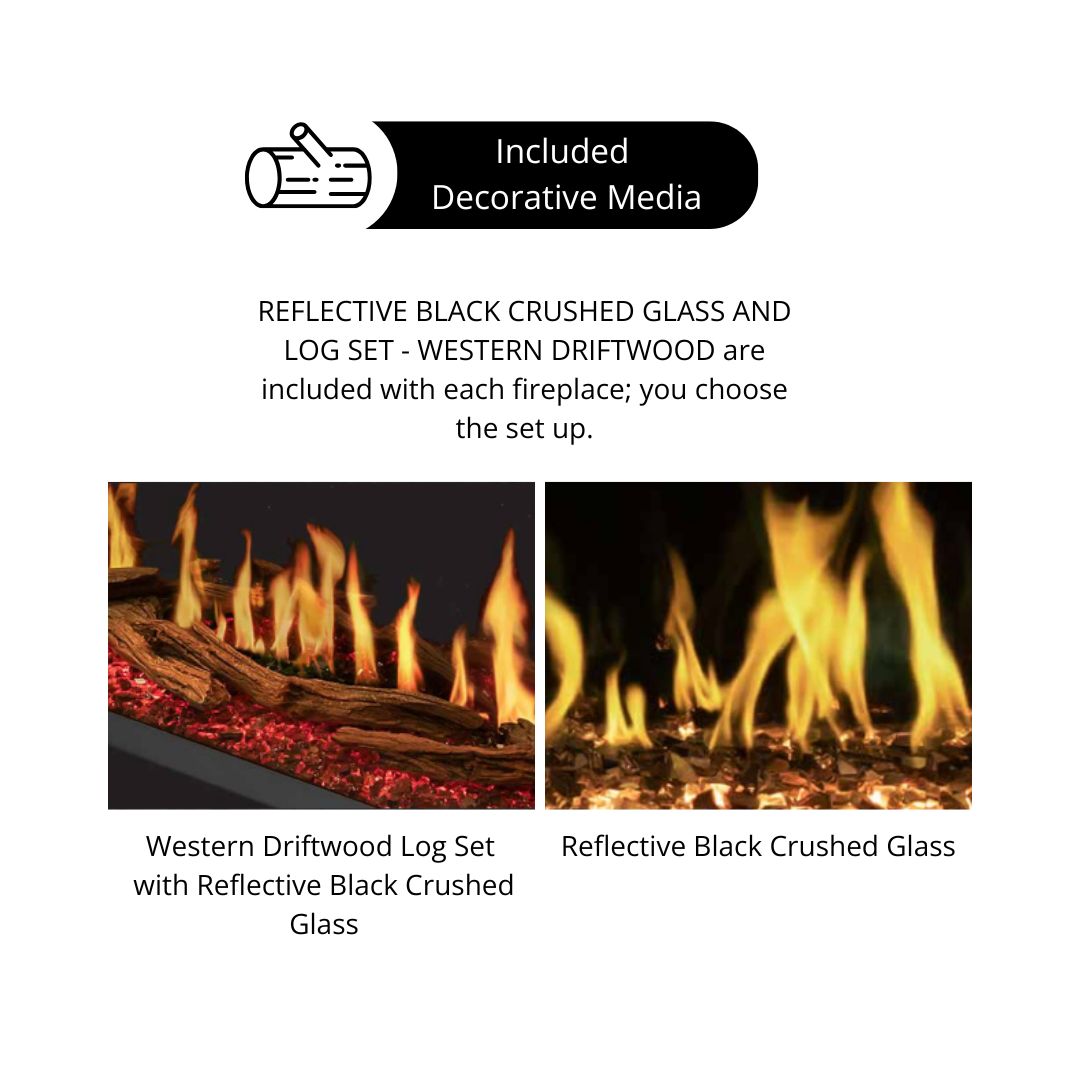

• Crushed Glass

• Driftwood Logs

• Drywall Stop

• User's Manual
