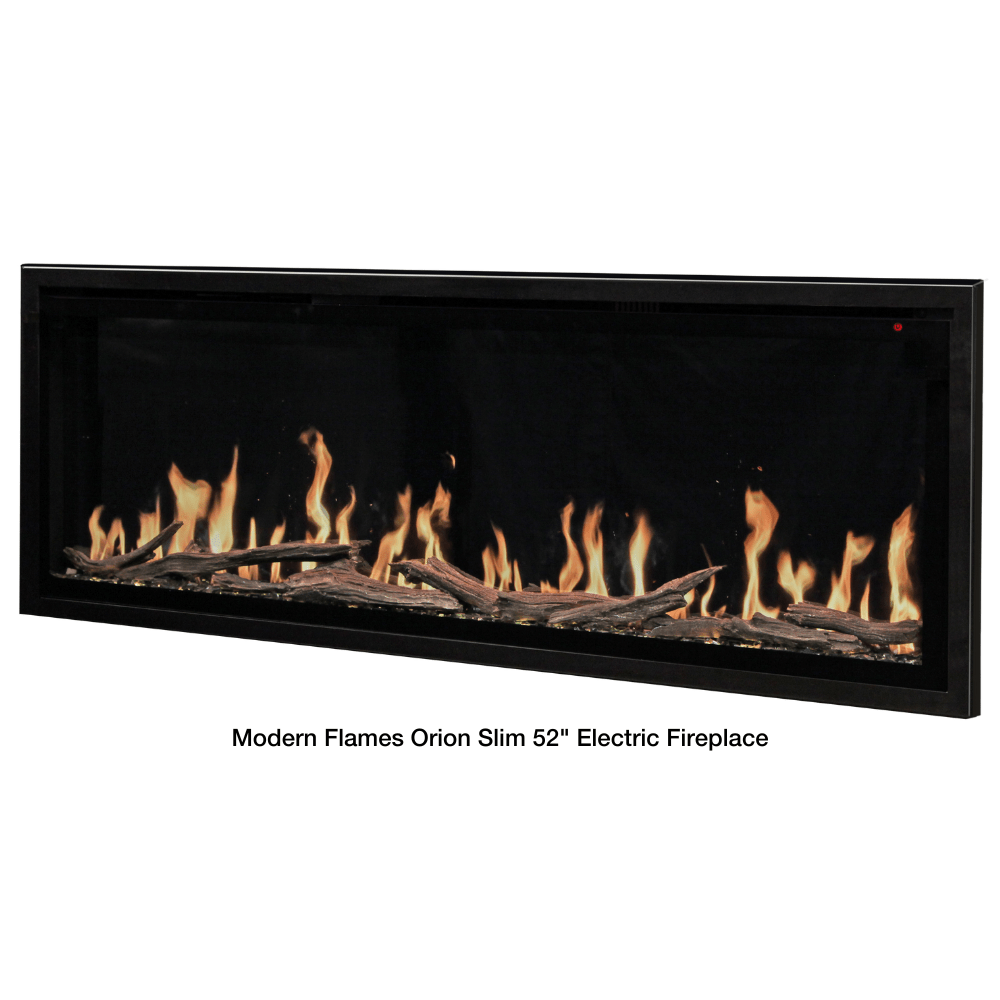

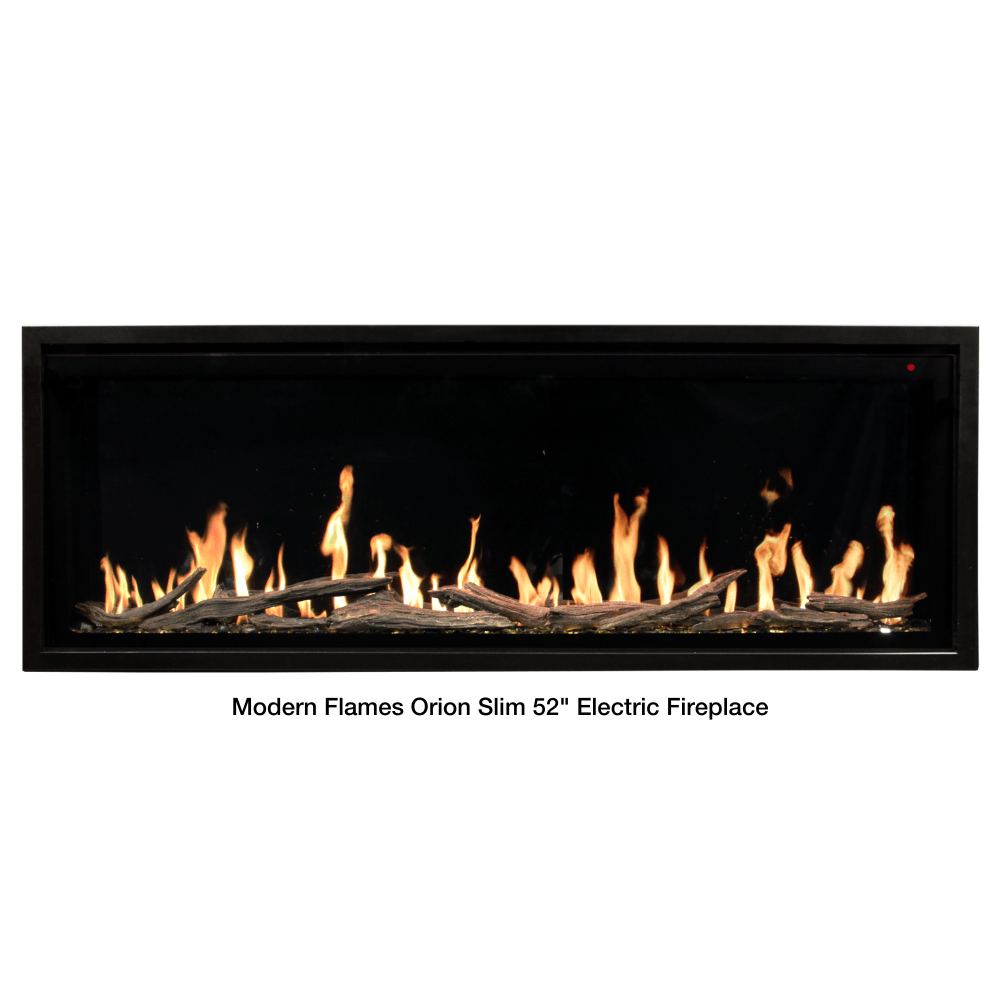

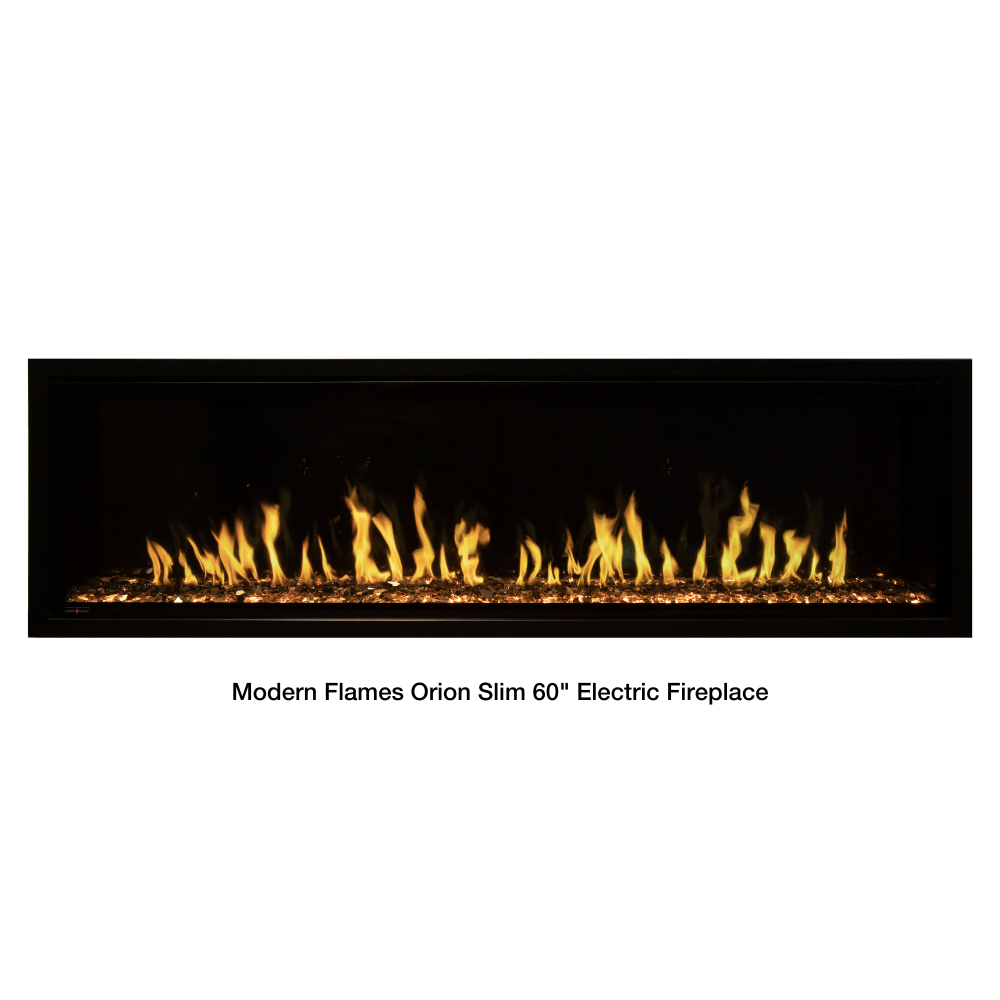

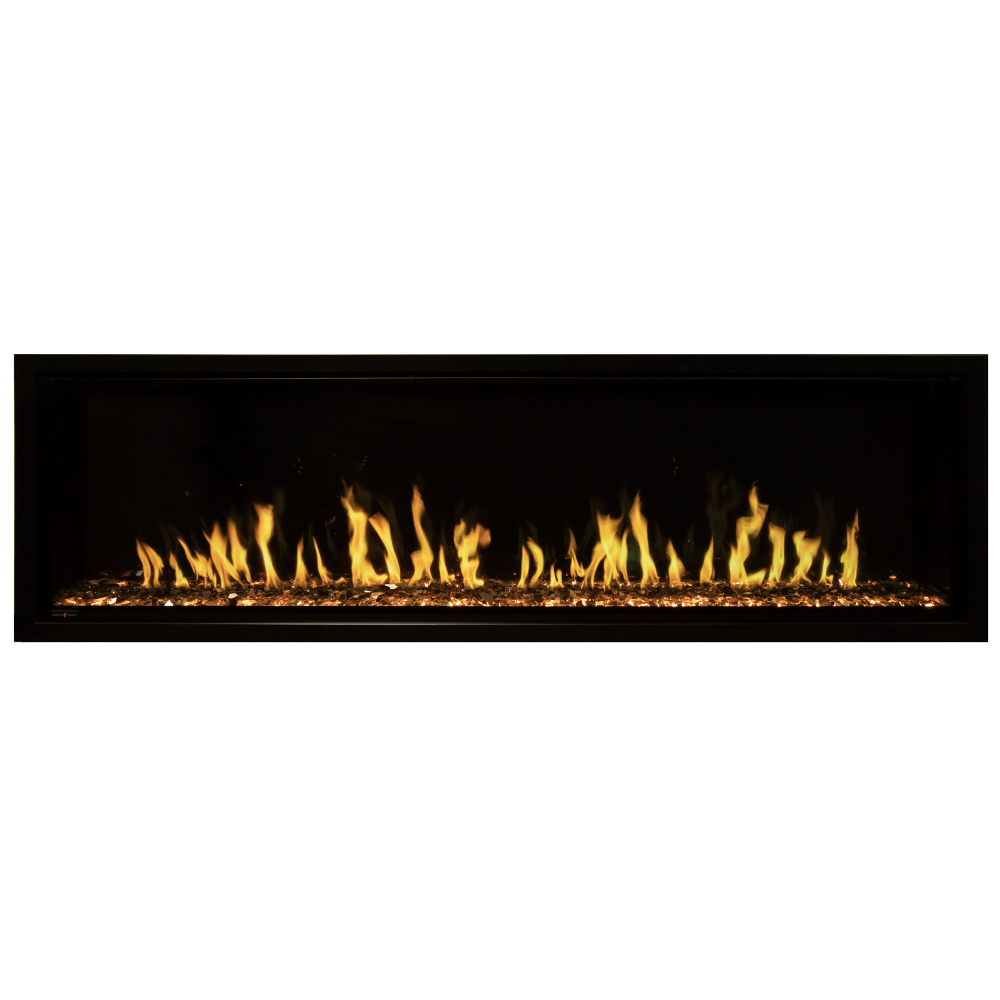

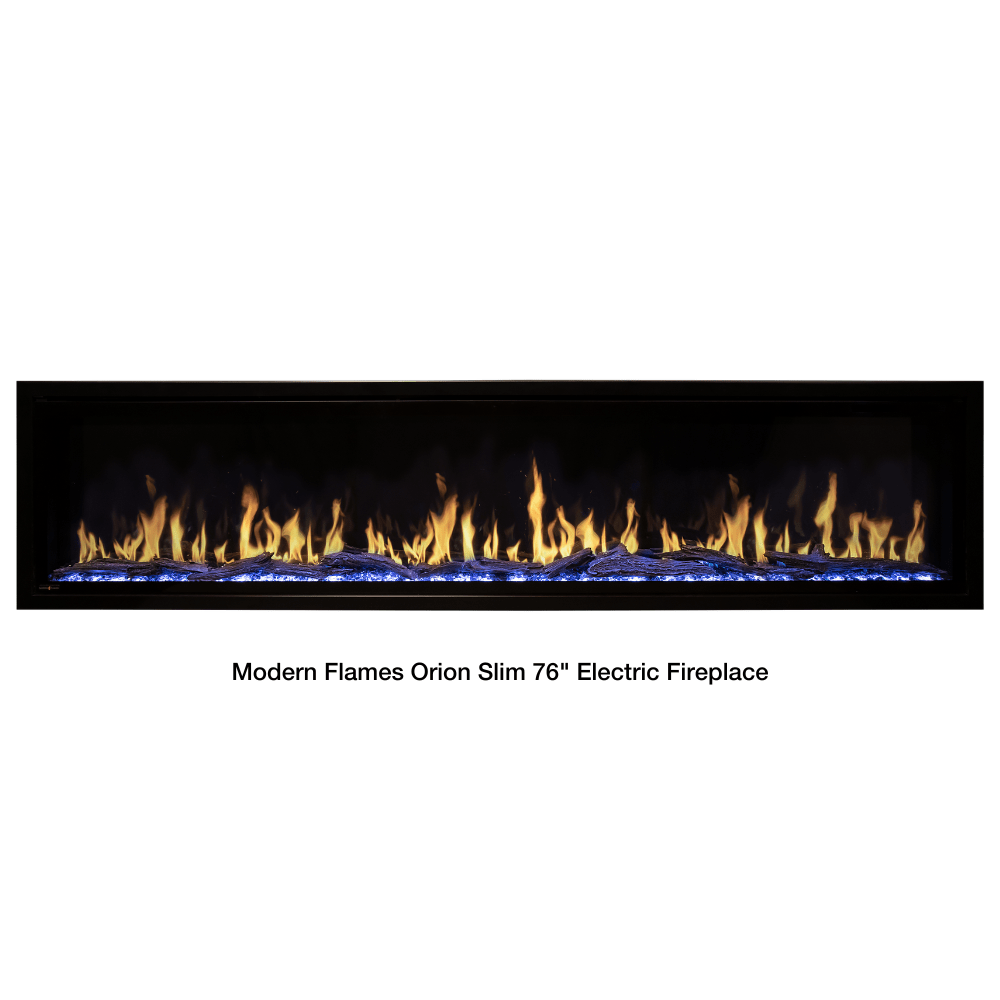

Modern Flames Orion Slim Electric Fireplace

The Orion Slim delivers ultra-realistic, multi-dimensional flames in a sleek, low-profile design. Powered by HELIOVISION™ Flame Technology, it creates lifelike flames that look consistent from every angle. With customizable flame styles, ambient crackling sounds, smart controls, and a slim depth for 2x6 wall installations, this fireplace blends modern convenience with authentic fire aesthetics.

Features

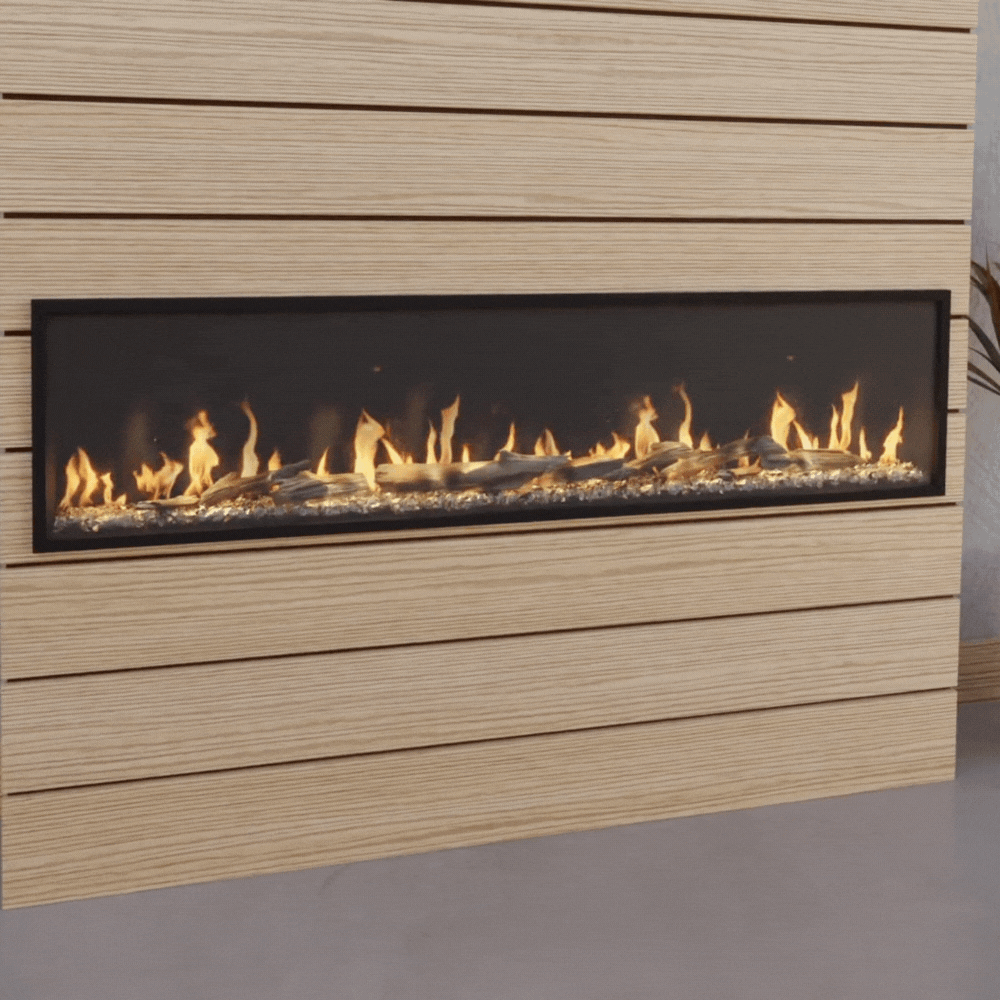

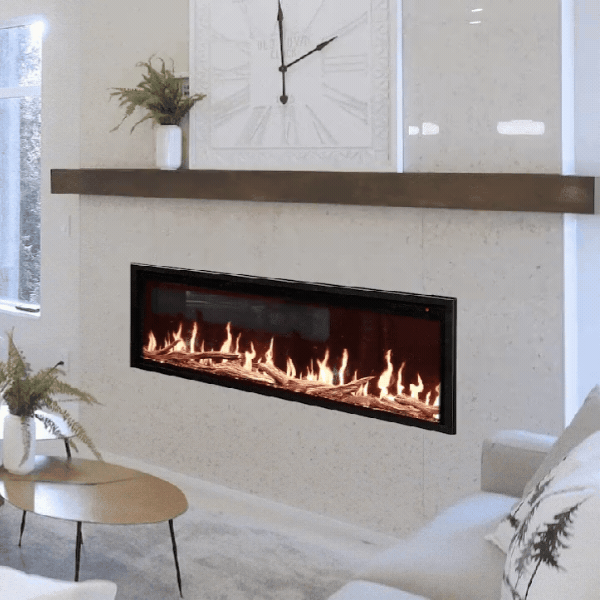

• Slim-depth electric fireplace for wall-mounted or recessed installation

• HELIOVISION™ Multi-Dimensional Flame Technology for realistic flame depth

• 3 flame styles: Hybrid, Wood, and Gas

• 18 flame display options with adjustable flame speed

• Multicolor ember bed and multicolor downlighting

• Ambient crackling sound effects

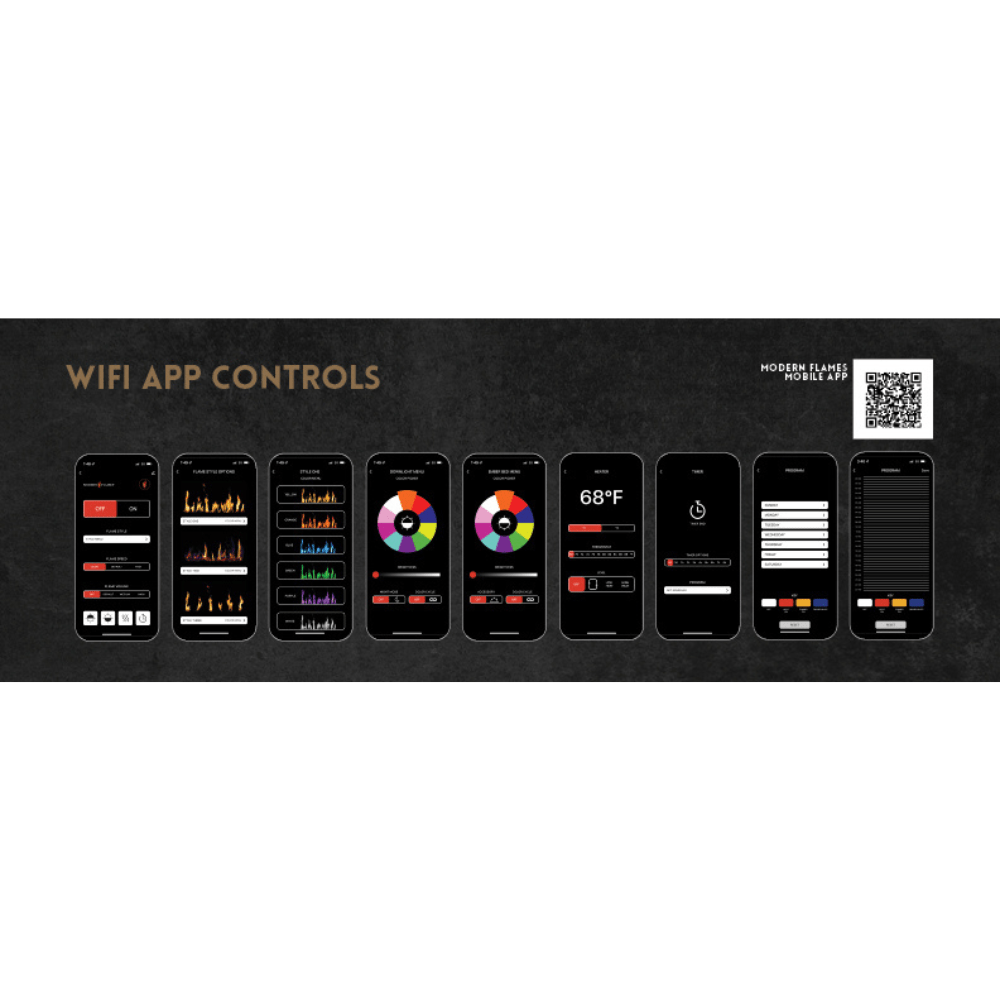

• Smart control via Modern Flames app, touch controls, or remote

• Programmable thermostat (66°F–88°F) and timer (30 minutes–8 hours)

• Energy-efficient dual heat settings

• Ventless design, no chimney required

• CSA certified

• Available in 4 sizes: 52", 60", 76", and 100"

Specifications

• Heating Area: Up to 450 sq. ft.

• Heat Output: 5,000 BTUs

• Electrical: Dedicated 20 Amp breaker required

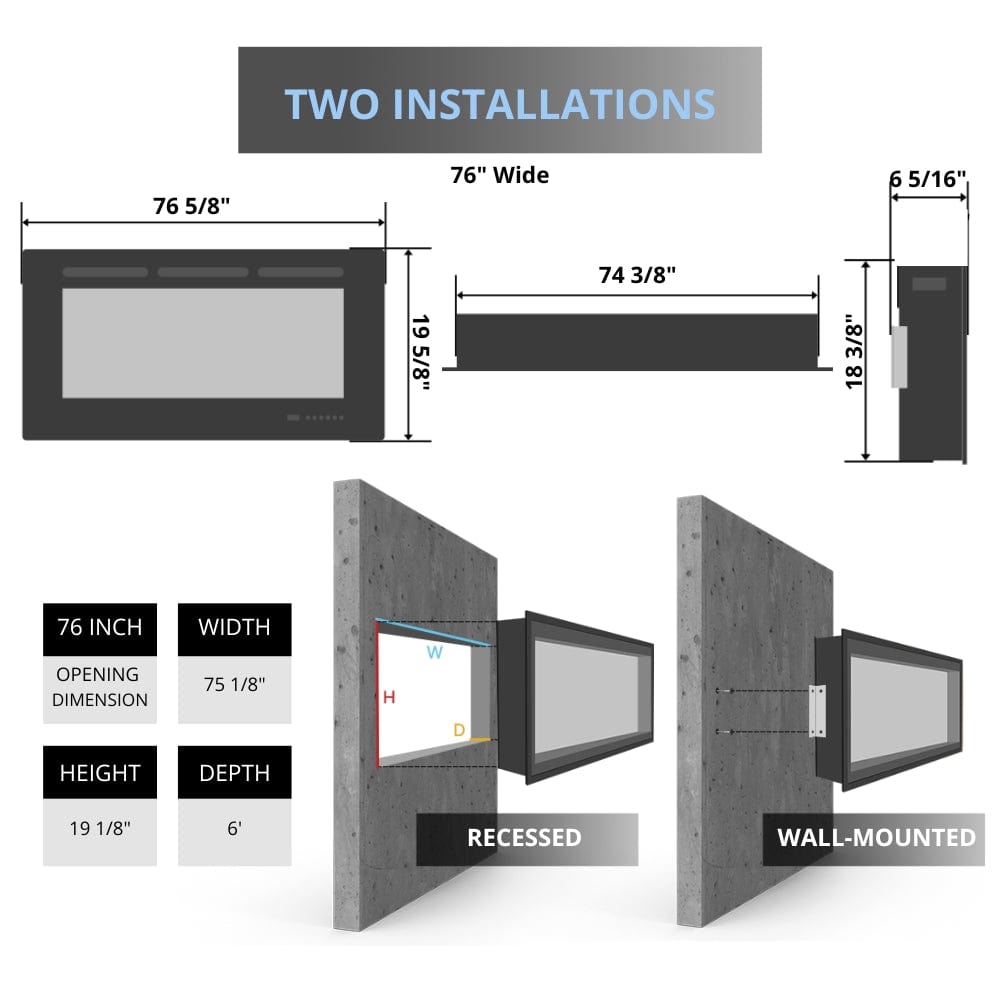

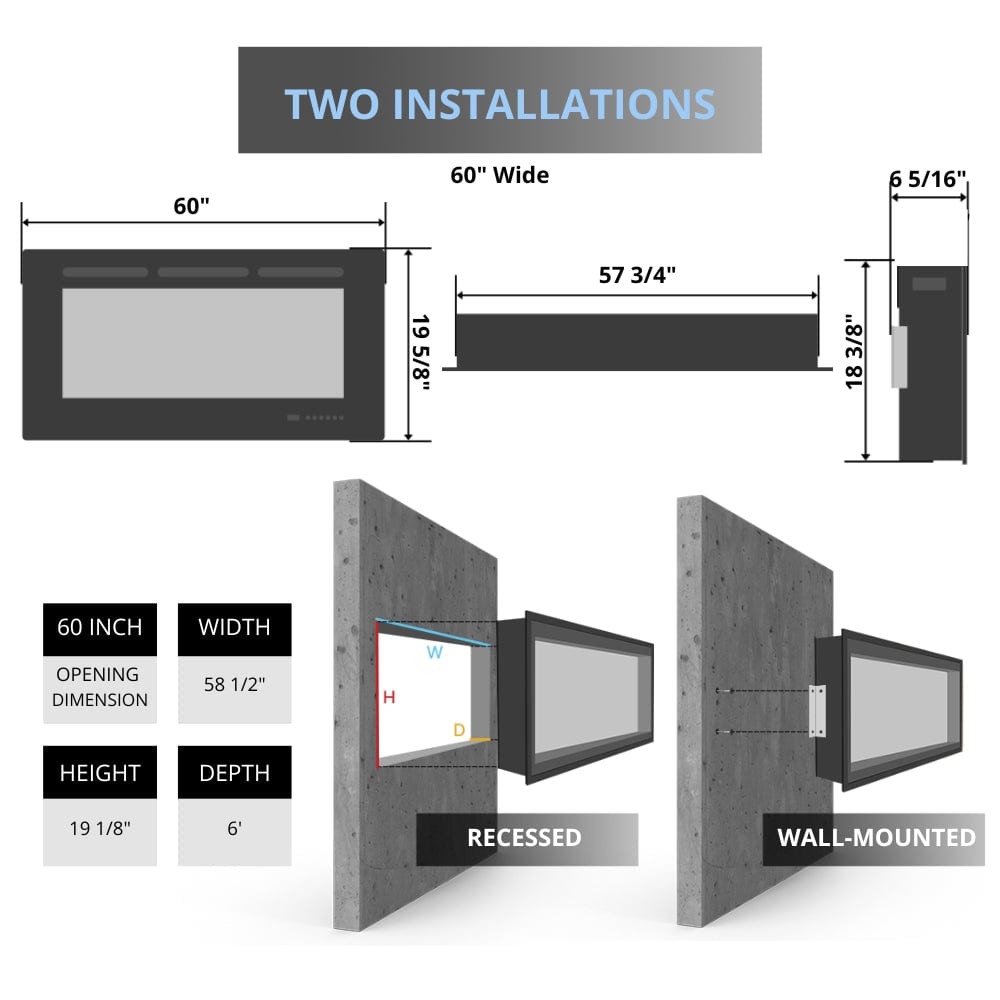

• Overall Dimensions (H × W × D):

  • 52": 19.63" × 52.37" × 6.31"

  • 60": 19.63" × 60" × 6.31"

  • 76": 19.63" × 76.73" × 6.31"

  • 100": 19.63" × 101" × 6.31"

• Framing Dimensions (H × W × D min.):

  • 52": 19.12" × 50.75" × 6"

  • 60": 19.12" × 58.50" × 6"

  • 76": 19.12" × 75.12" × 6"

  • 100": 19.12" × 99.50" × 6"

• Viewing Area (H × W):

  • 52": 14.38" × 47.88"

  • 60": 14.38" × 55.5"

  • 76": 14.38" × 72.19"

  • 100": 14.38" × 96.44"

• Warranty: 5-Year Limited Warranty

What’s in the Box

• Electric Fireplace Assembly

• Hardware Kit

• Remote Control

• Wall Mount Bracket

• Crushed Glass

• Driftwood Logs

• User’s Manual
