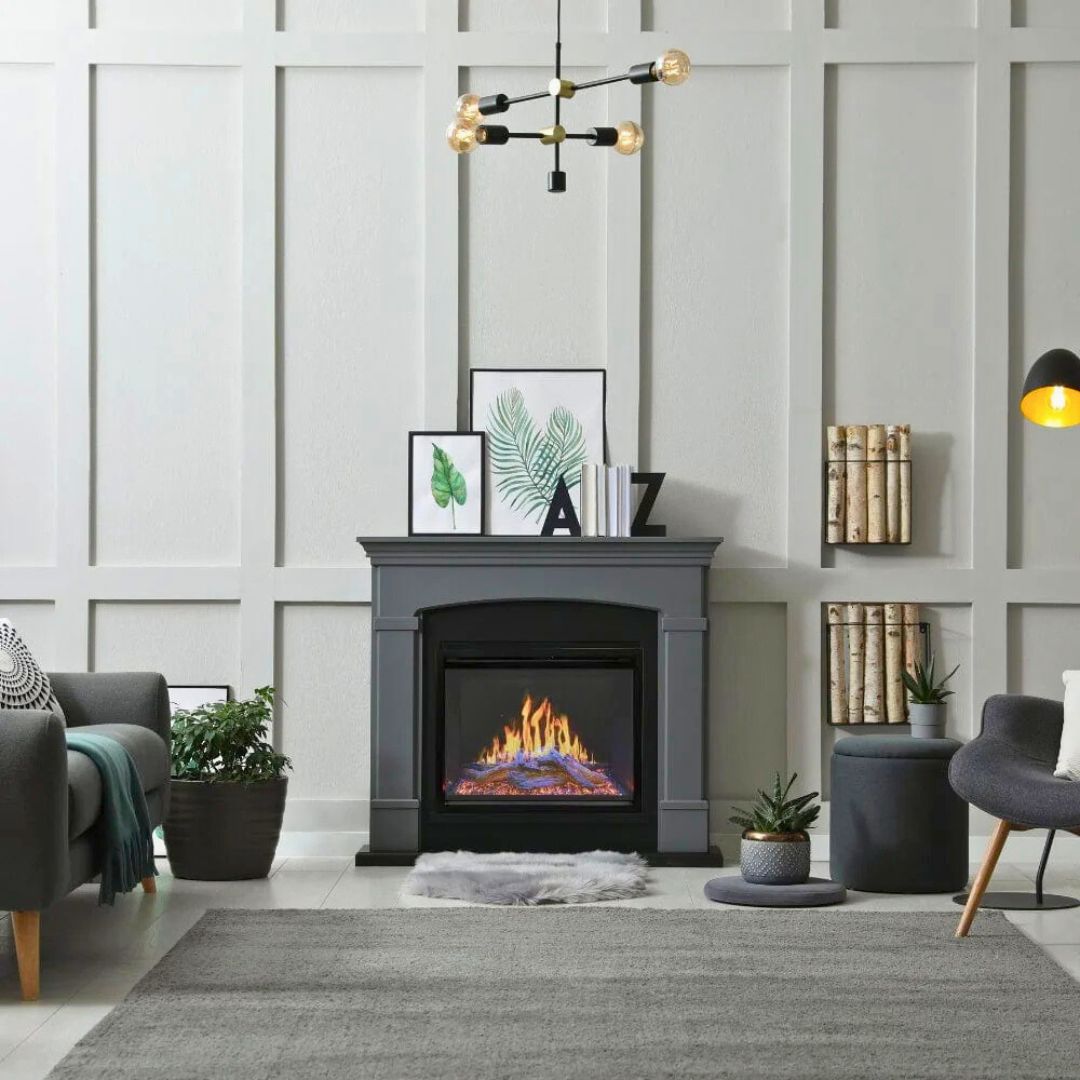

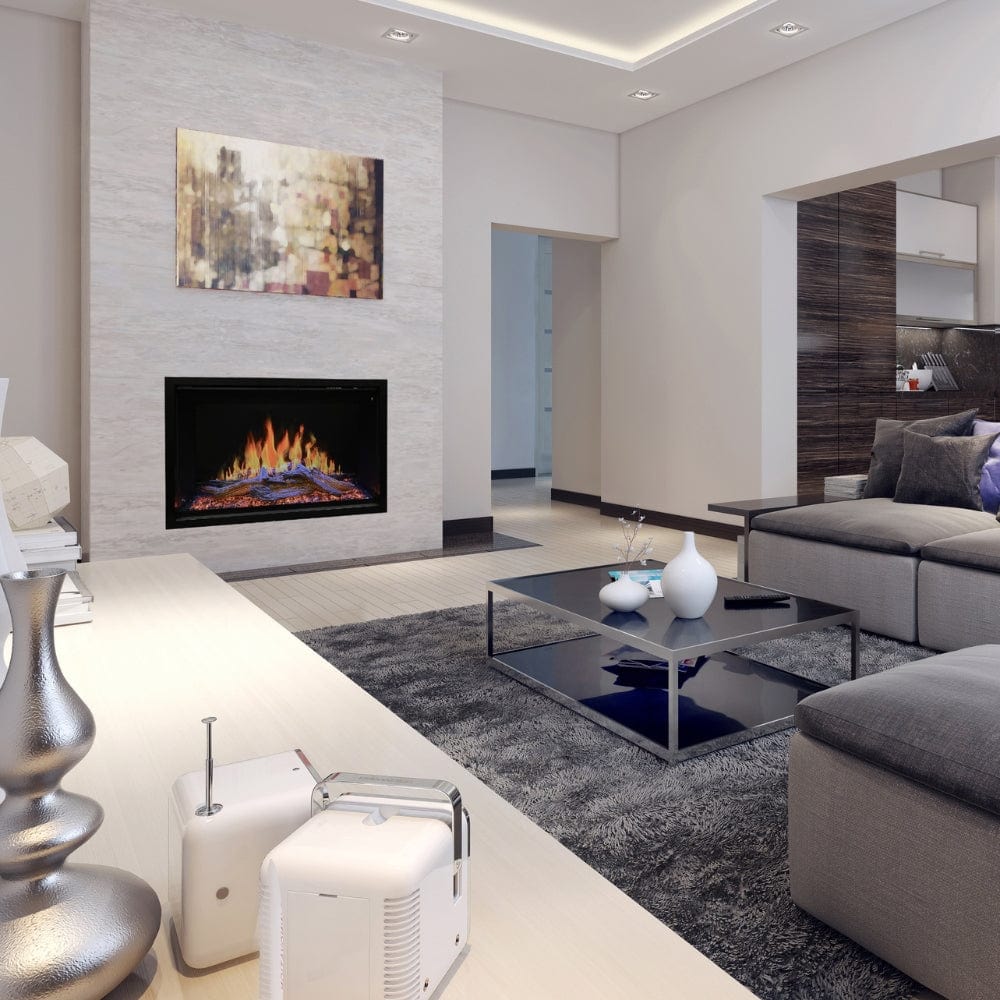

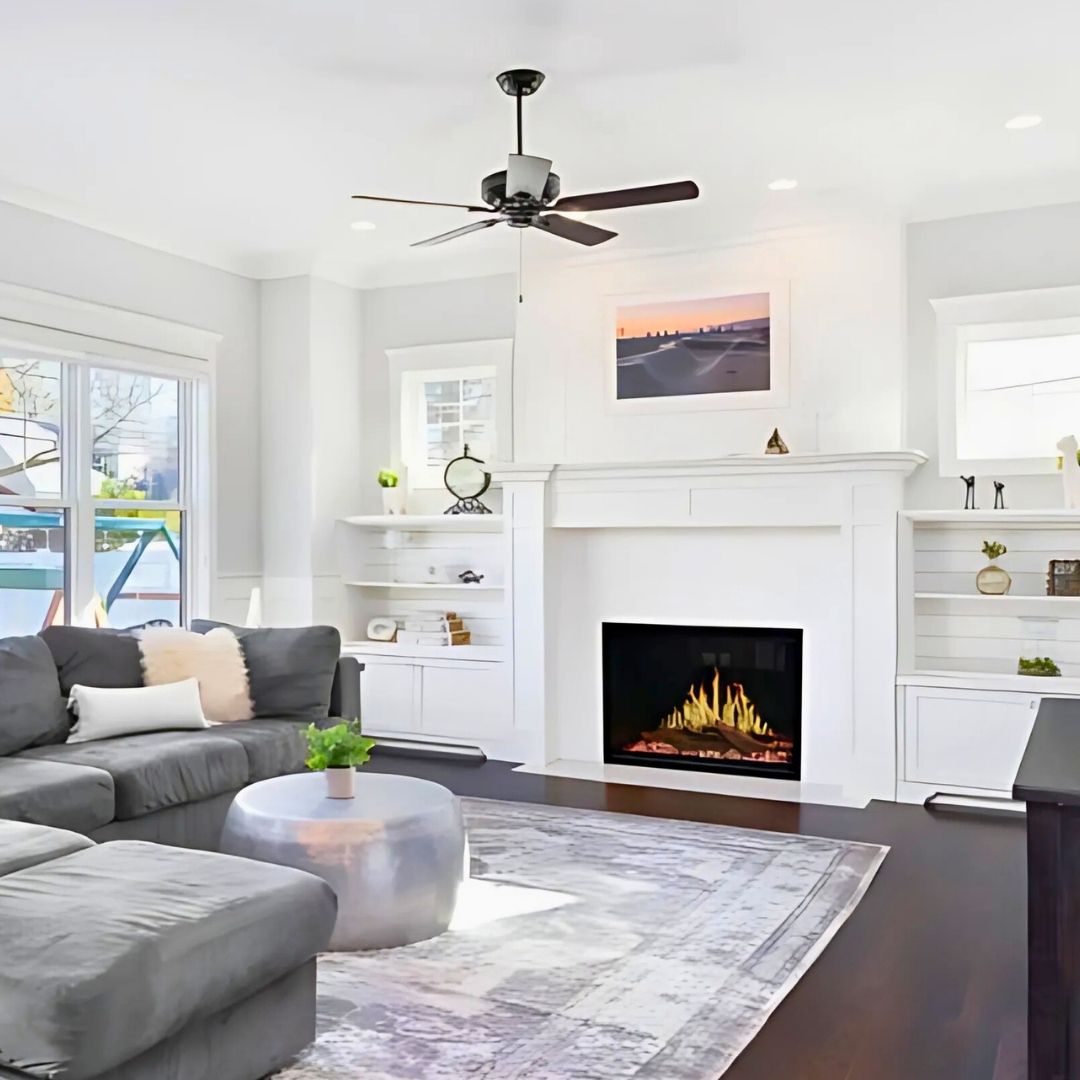

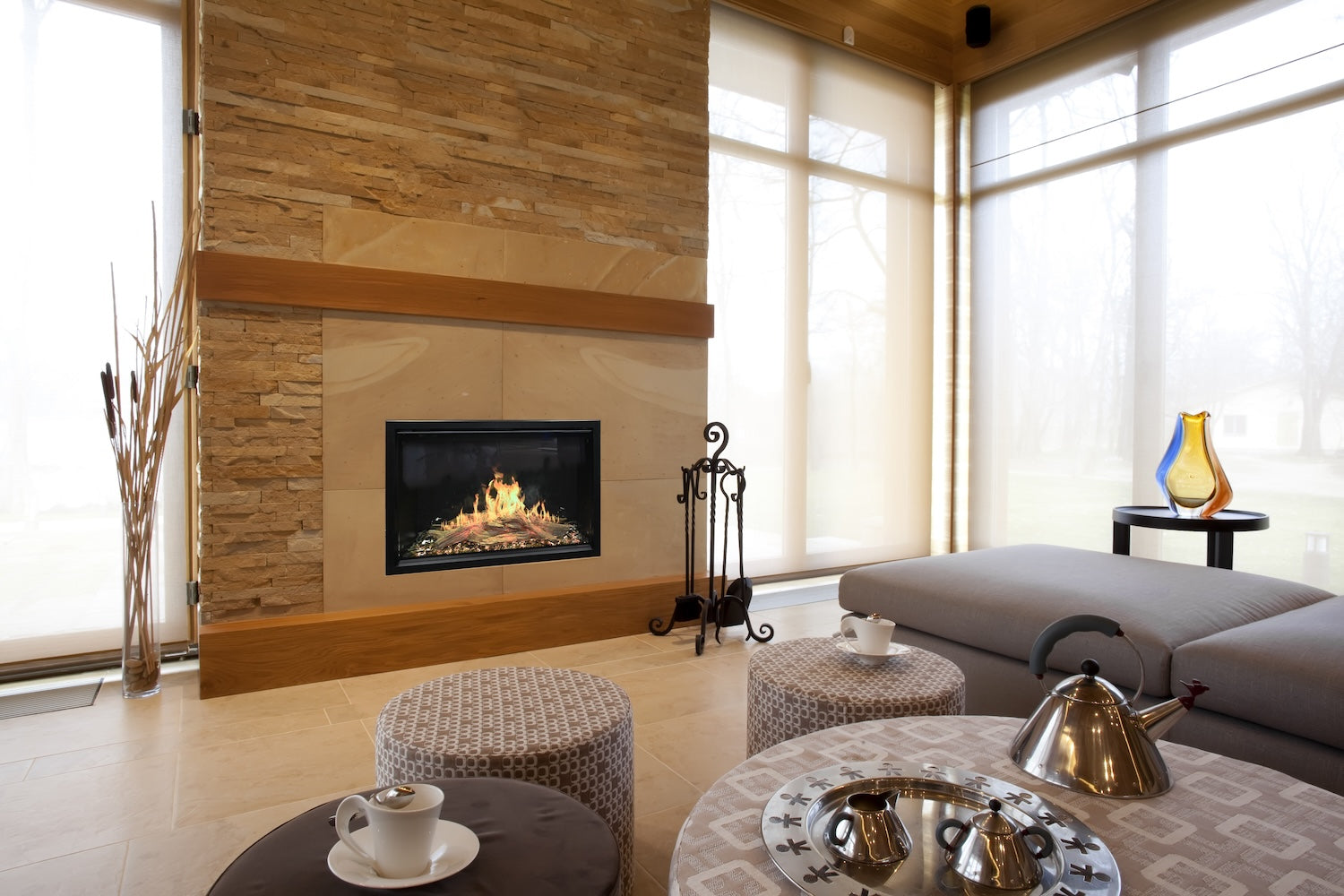

Modern Flames Orion Traditional Built-In Smart Virtual Electric Fireplace

The Modern Flames Orion Traditional is a built-in smart electric fireplace designed to deliver one of the most realistic flame experiences available. Using HELIOVISION™ virtual flame technology, it displays real flame footage rather than simulated light effects, creating a multi-dimensional fire that looks authentic from every angle. Designed to fit new or existing fireplace openings, this ventless electric fireplace offers easy installation, advanced smart controls, and powerful heating—making it an ideal upgrade for traditional living spaces that want modern performance without sacrificing realism.

Features

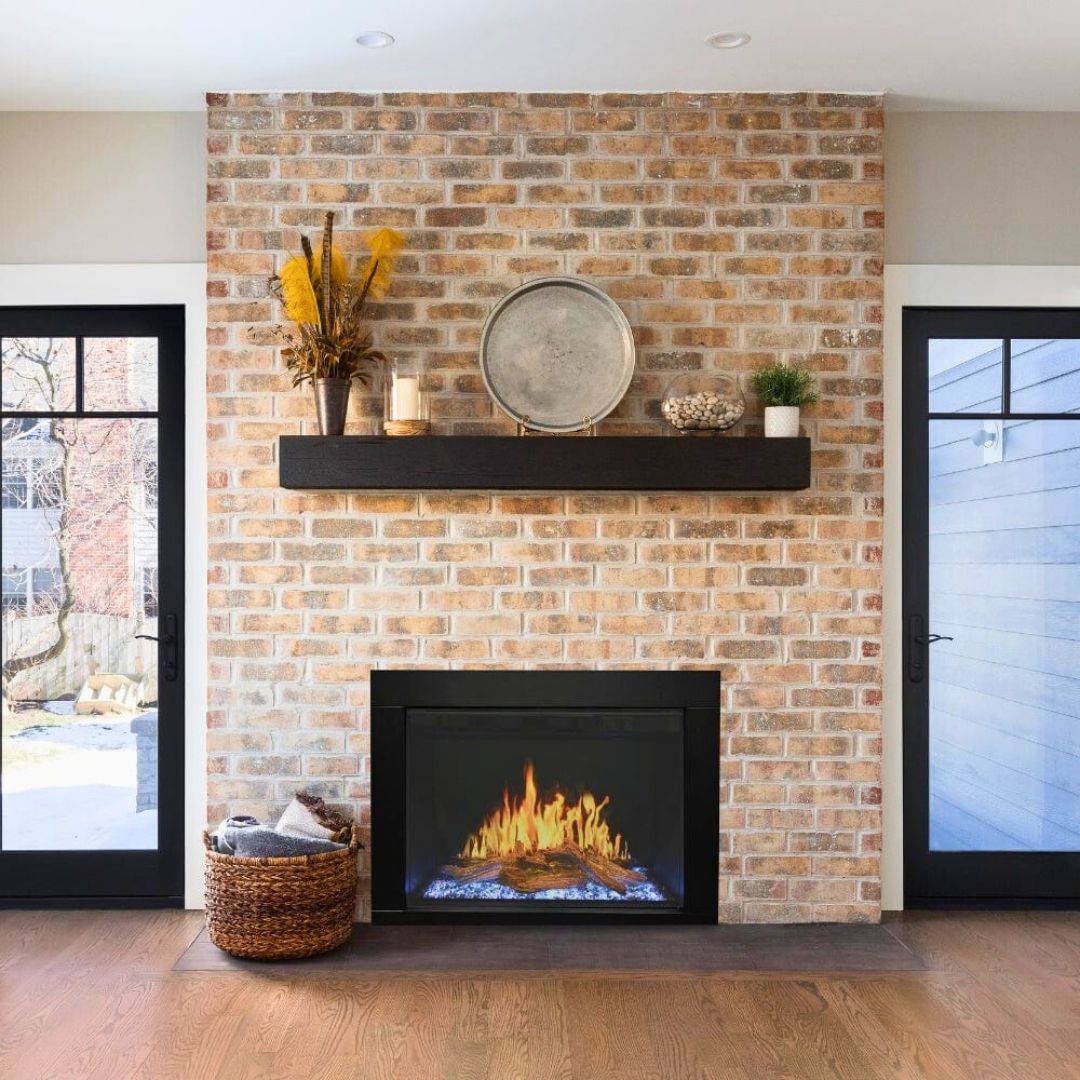

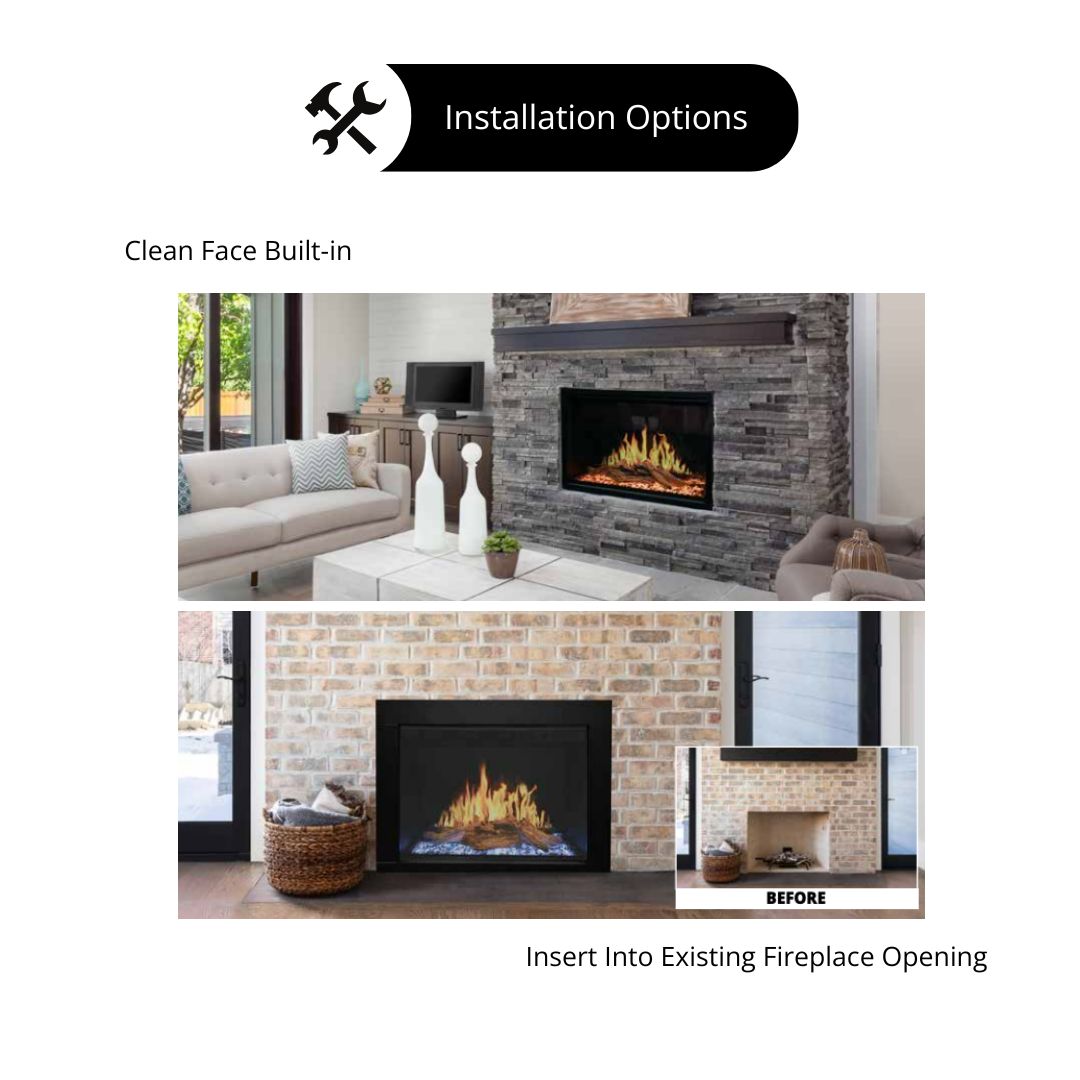

• Traditional built-in electric fireplace for new or existing openings

• Ventless design for easier, safer installation

• Plug-in or hardwired installation options

• Integrated 1.3" trim to cover gaps between unit and wall

• Available sizes: 25", 30", 35", 41", and 53" wide

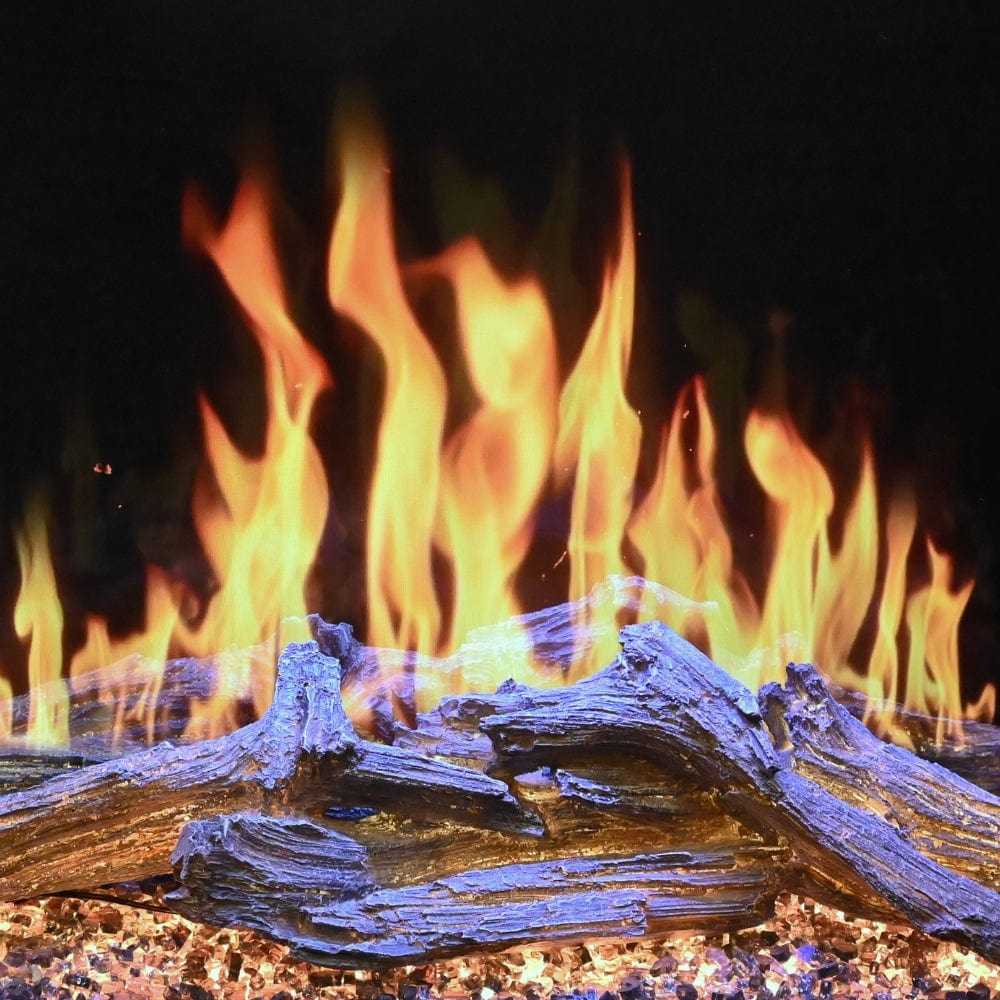

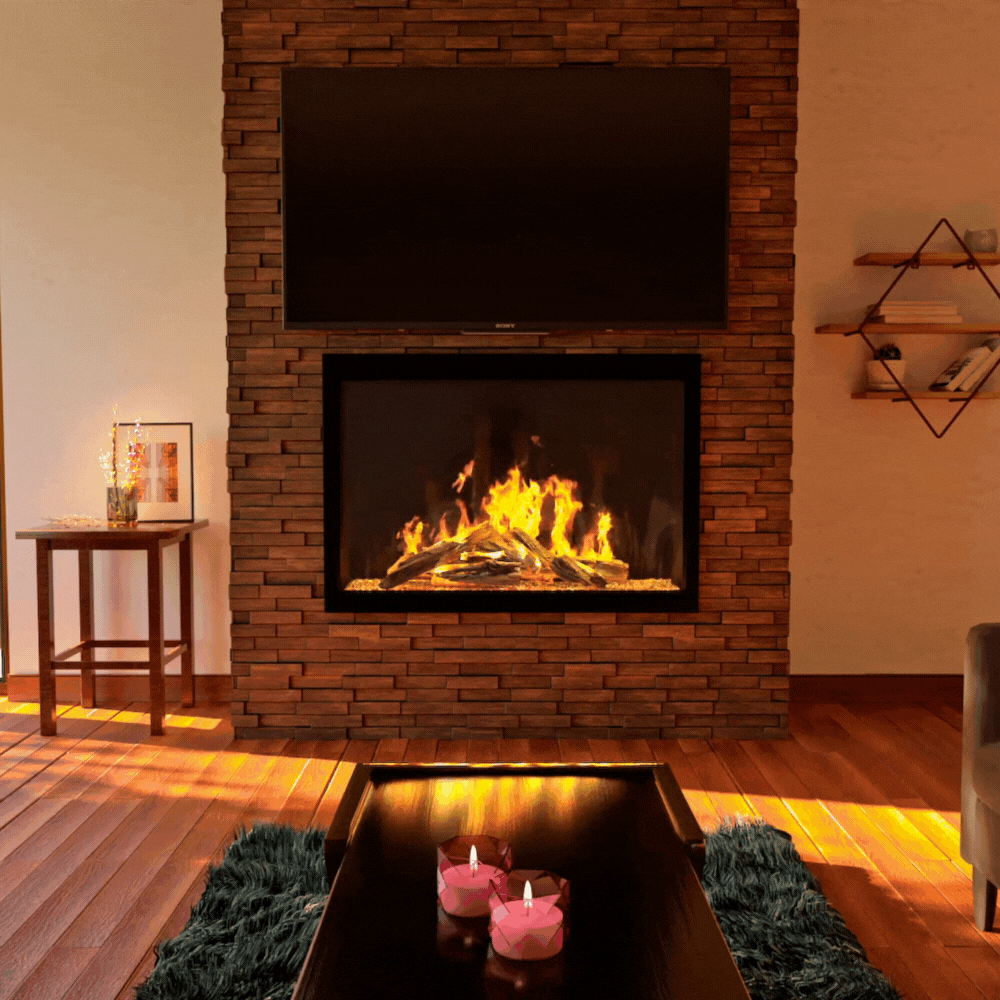

• HELIOVISION™ virtual flame technology using real flame footage

• Multi-dimensional flames consistent from any viewing angle

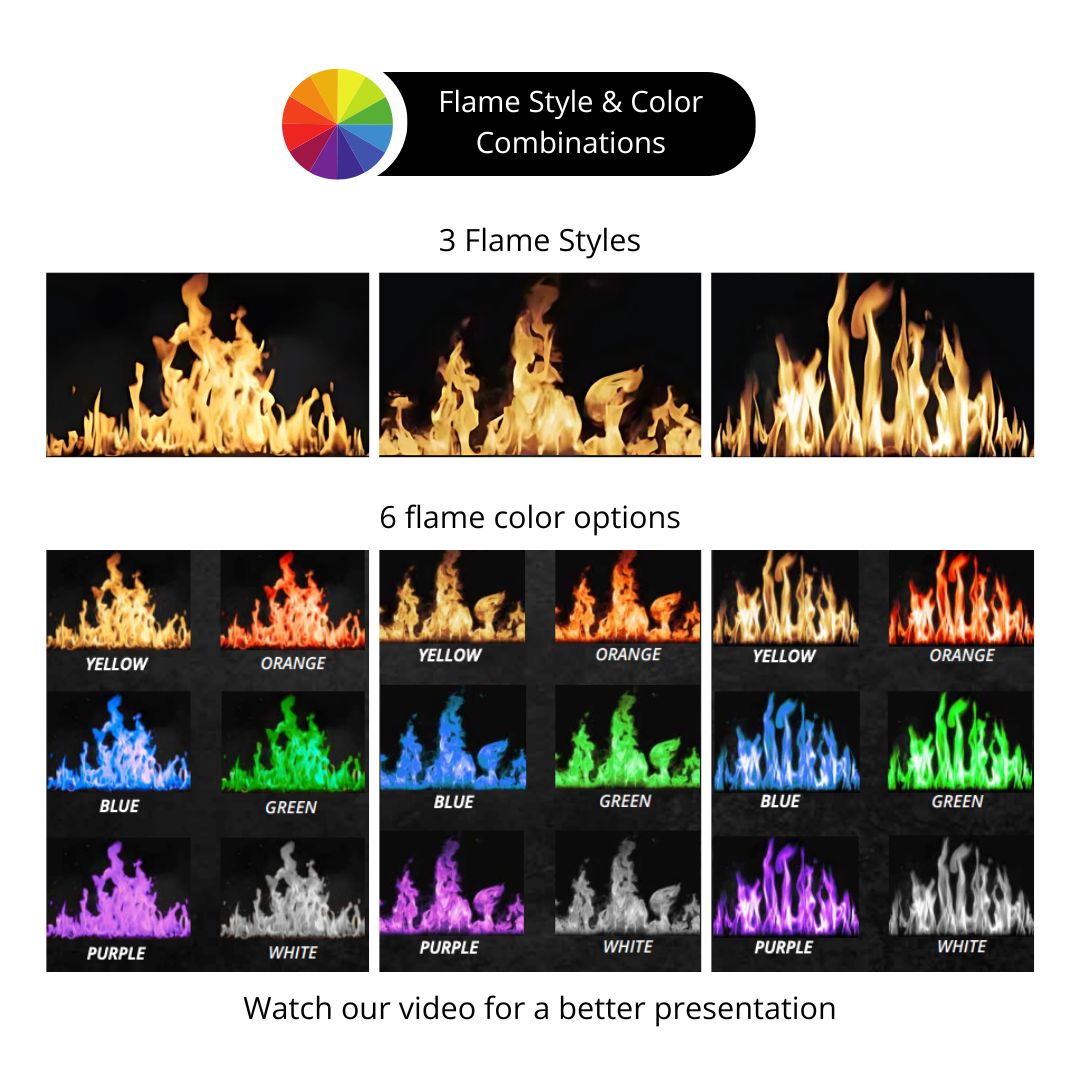

• 18 flame display options (3 flame styles, 6 flame colors, adjustable speed)

• Multicolor ember bed and downlighting

• Ambient crackling sound effects

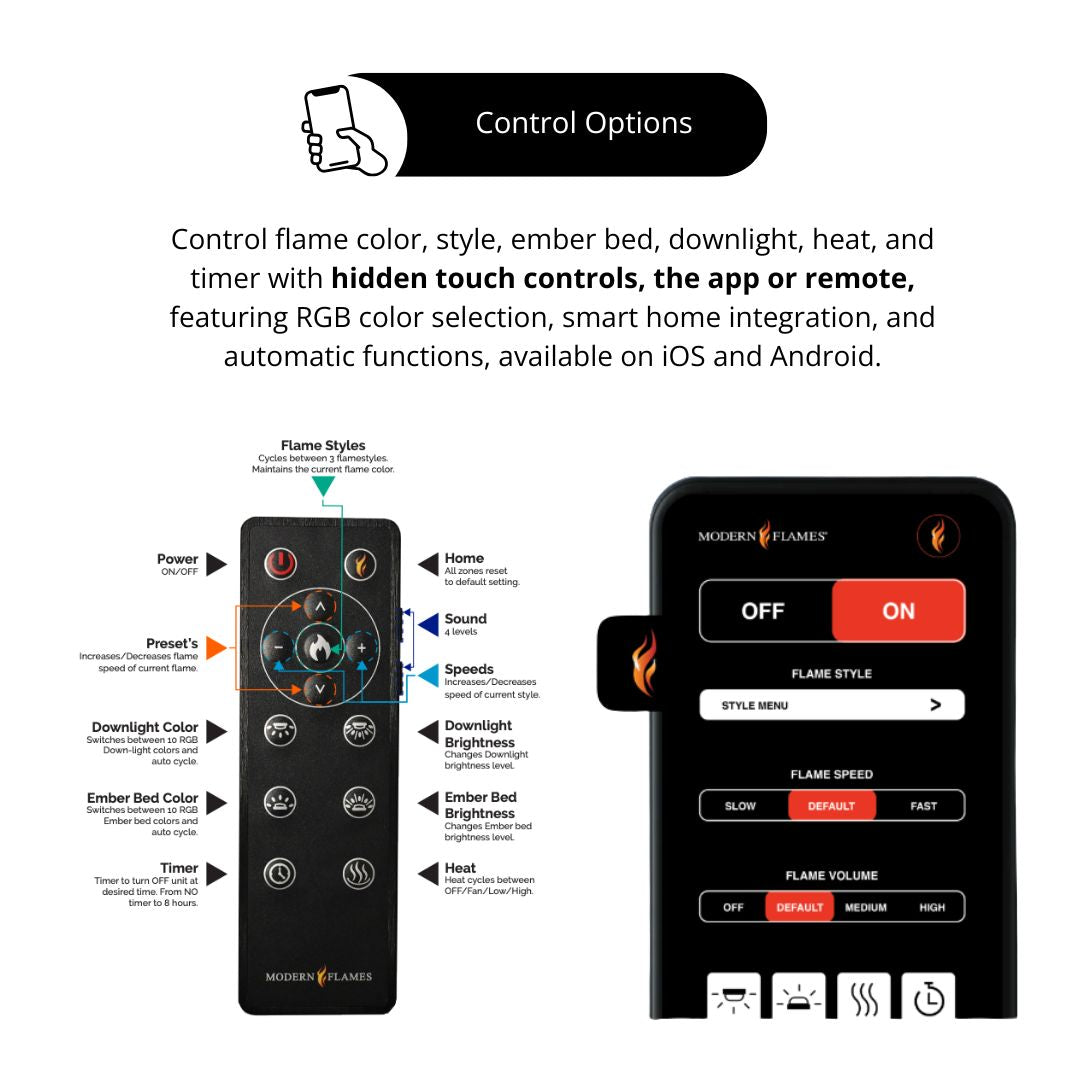

• Smart control via Modern Flames app, remote, or touch controls

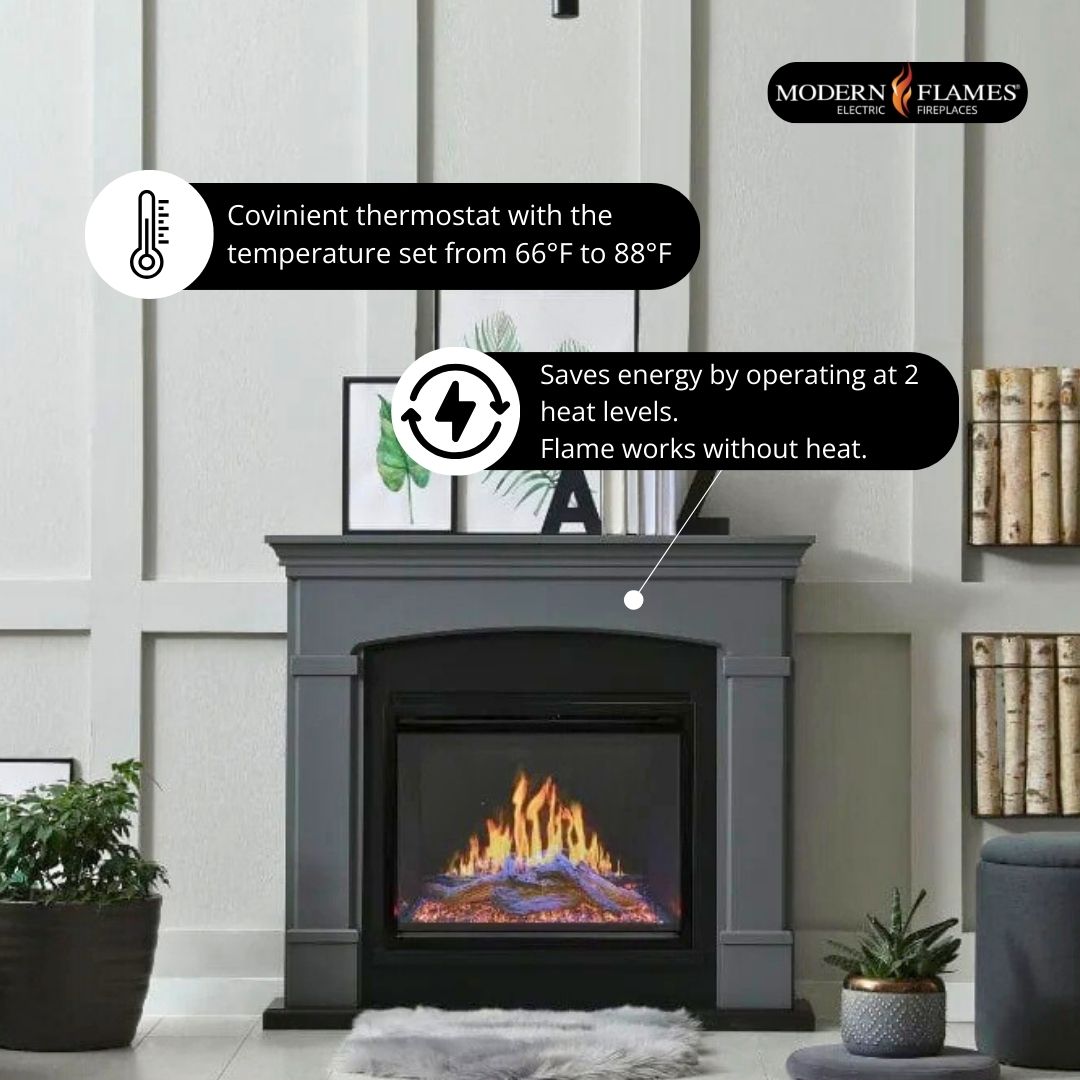

• Programmable thermostat (66°F–88°F)

• Timer function up to 8 hours

• Dual heat settings for energy efficiency

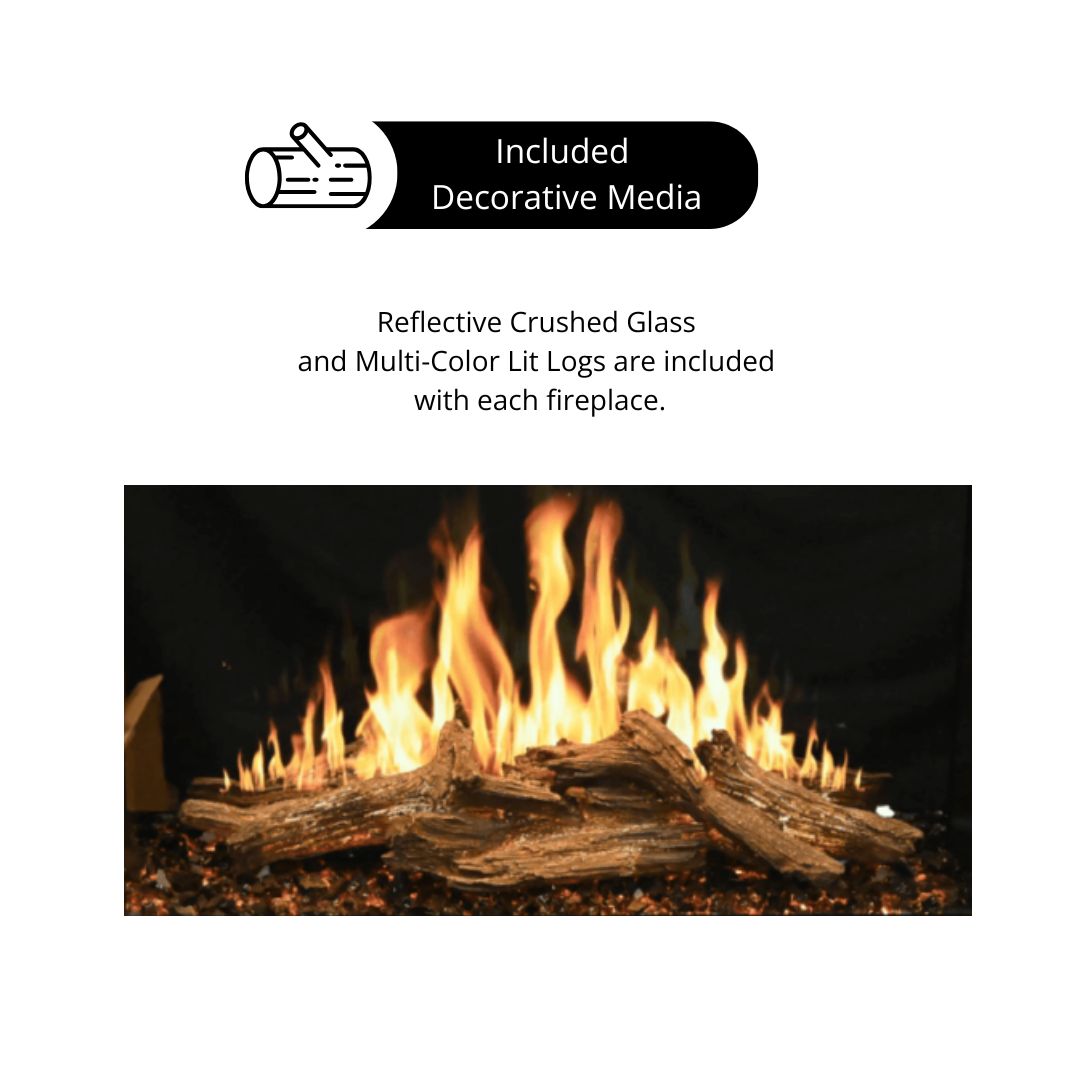

• Includes black reflective glass and driftwood log set

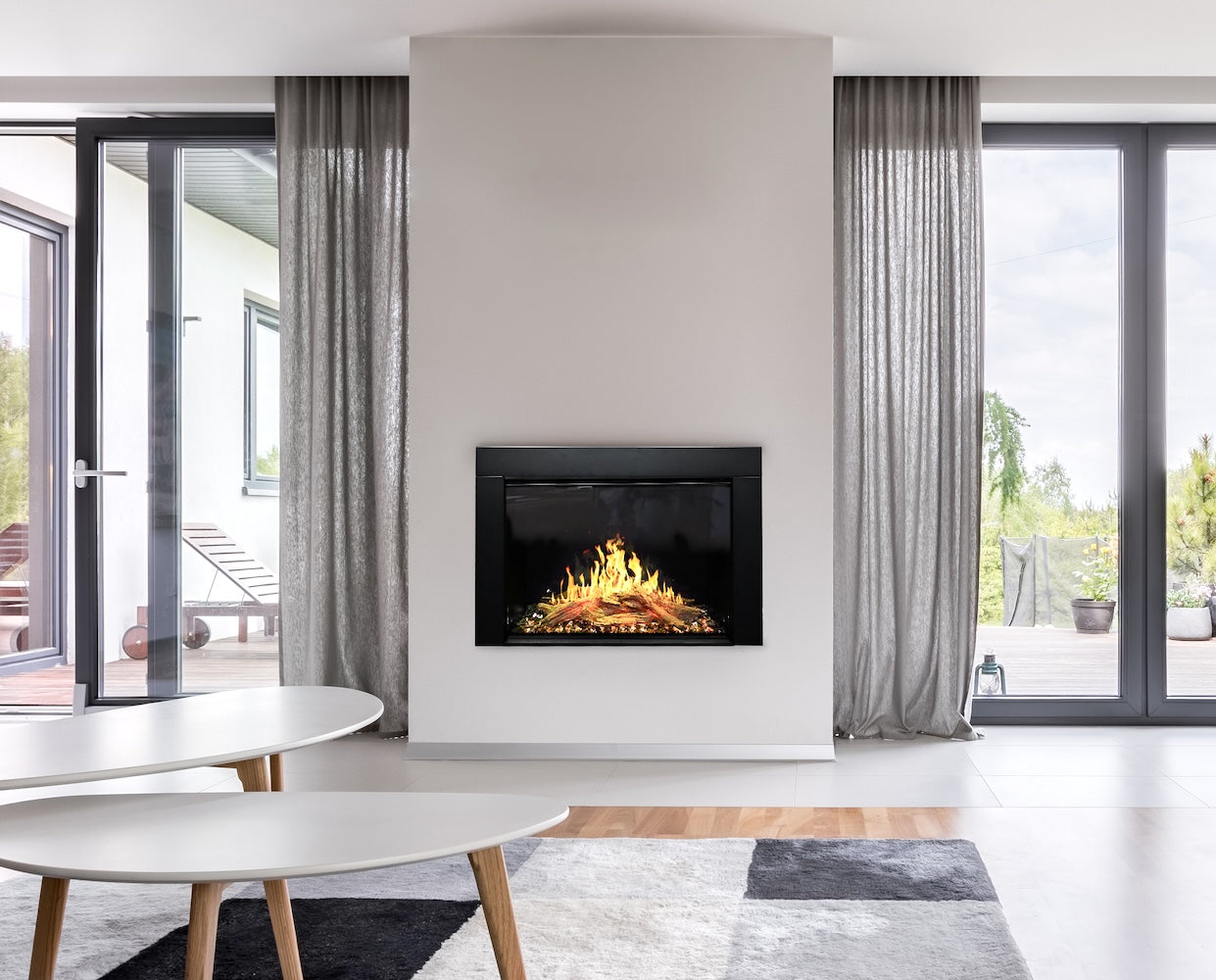

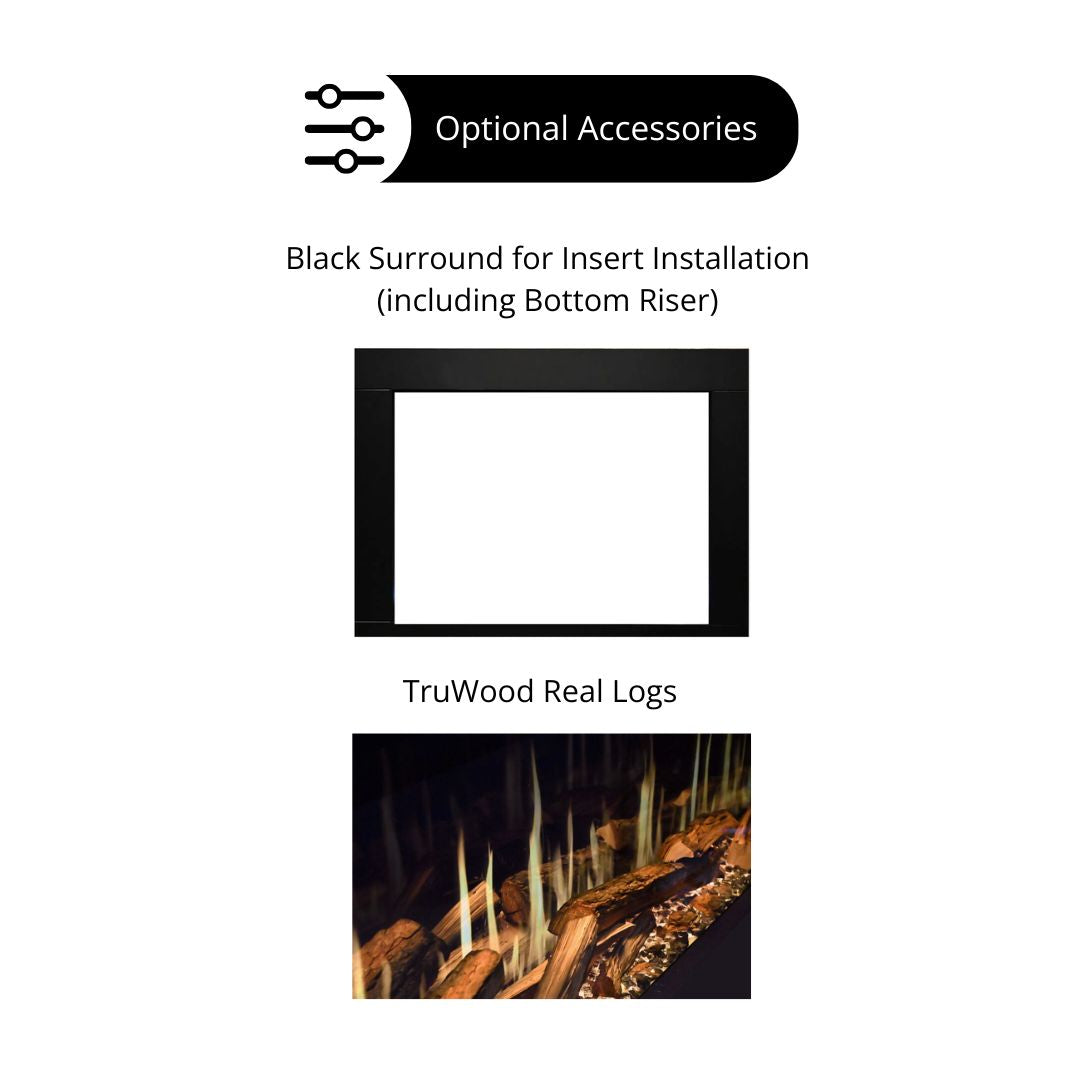

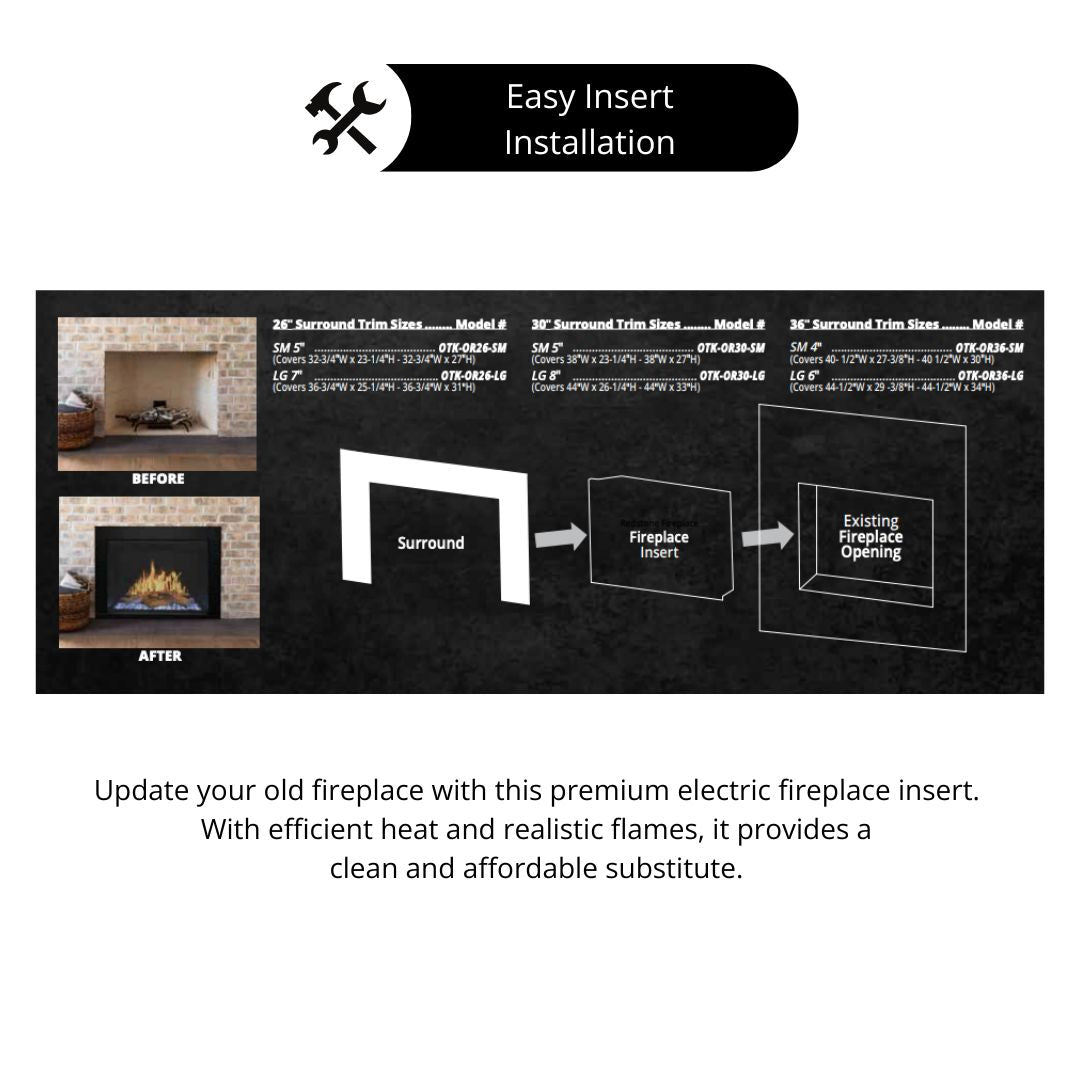

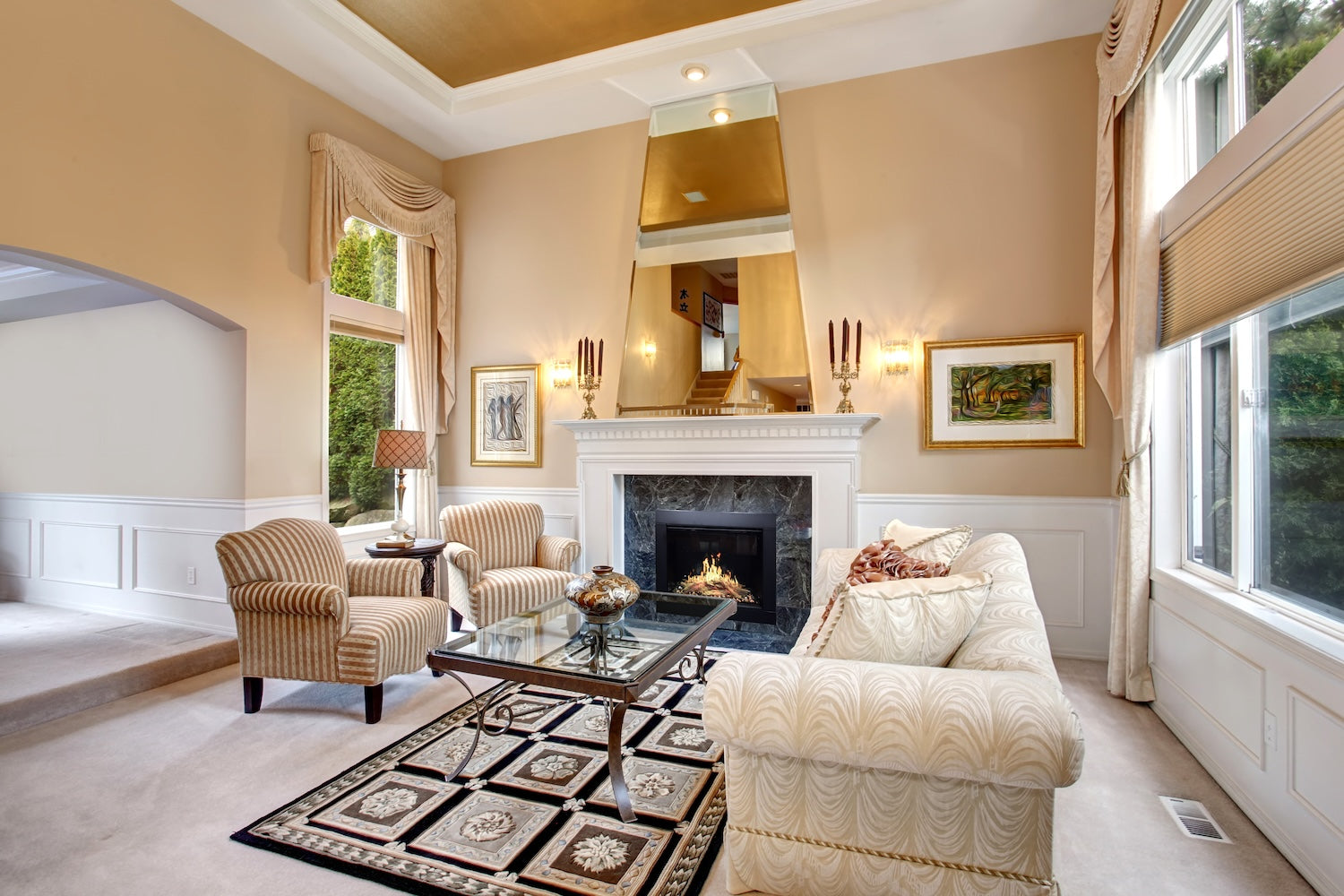

• Optional surrounds for retrofitting old fireplace openings

• Heating coverage up to 450 sq. ft.

Specifications

• Heating Area: Up to 450 sq. ft.

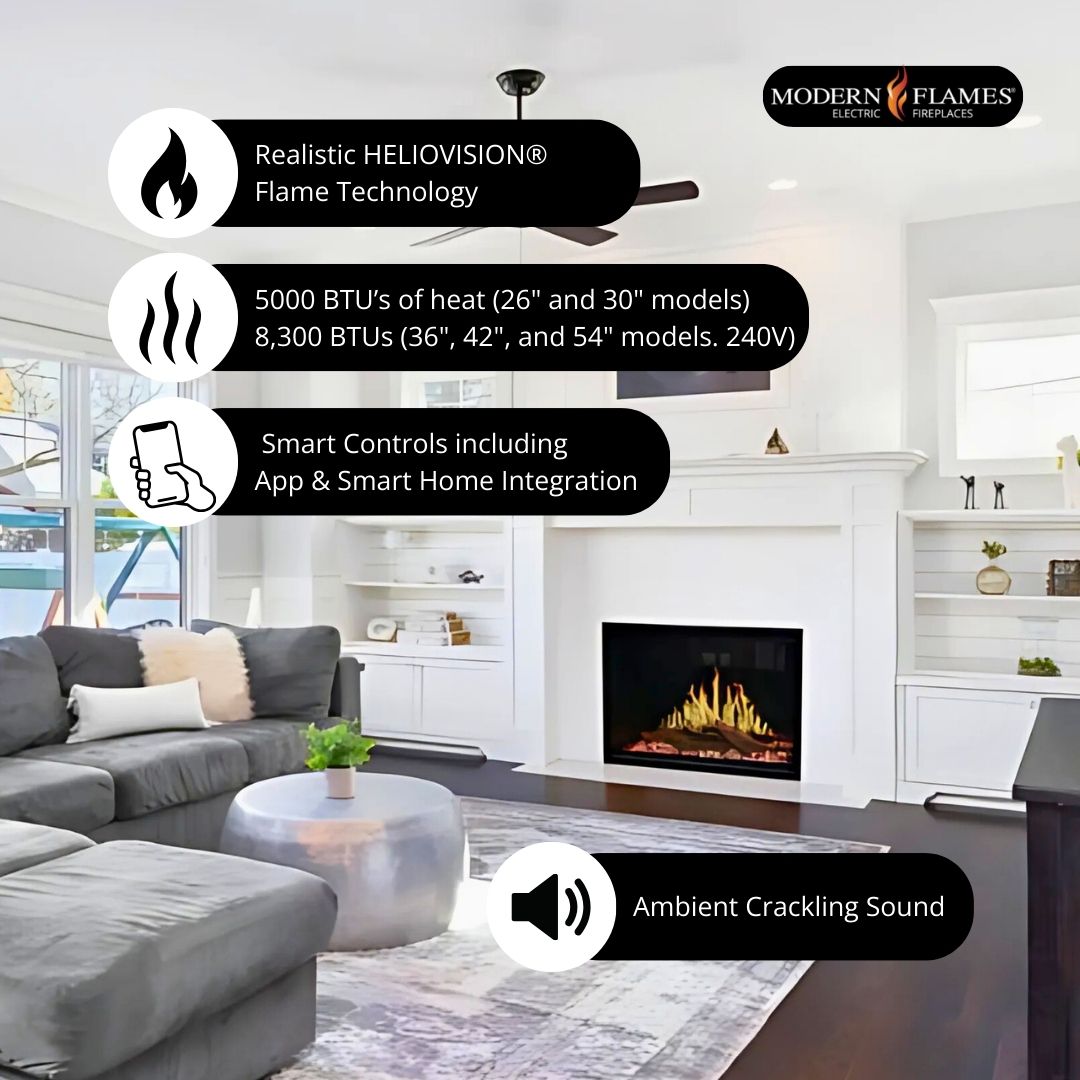

• Heat Output:

  • 5,000 BTUs (25" & 30" models)

  • 8,300 BTUs (35", 41", & 53" models – hardwired required)

• Electrical Requirements:

  • Dedicated circuit

  • 20-amp breaker required for hardwired units

• Overall Dimensions (H × W × D):

  • 25": 19.63" × 25" × 9.88"

  • 30": 19.63" × 30.5" × 9.88"

  • 35": 24.81" × 35" × 9.88"

  • 41": 27.81" × 41" × 9.88"

  • 53": 33.81" × 53.38" × 9.88"

• Framing Dimensions (H × W × D):

  • 25": 18.75" × 23" × 10"

  • 30": 18.75" × 28.25" × 10"

  • 35": 23.88" × 32.63" × 10"

  • 41": 26.75" × 38.75" × 10"

  • 53": 32.75" × 50.94" × 10"

• Viewing Area (H × W):

  • 25": 17.06" × 22.44"

  • 30": 17.06" × 27.63"

  • 35": 22.19" × 32.13"

  • 41": 25.19" × 38.13"

  • 53": 31.19" × 50.38"

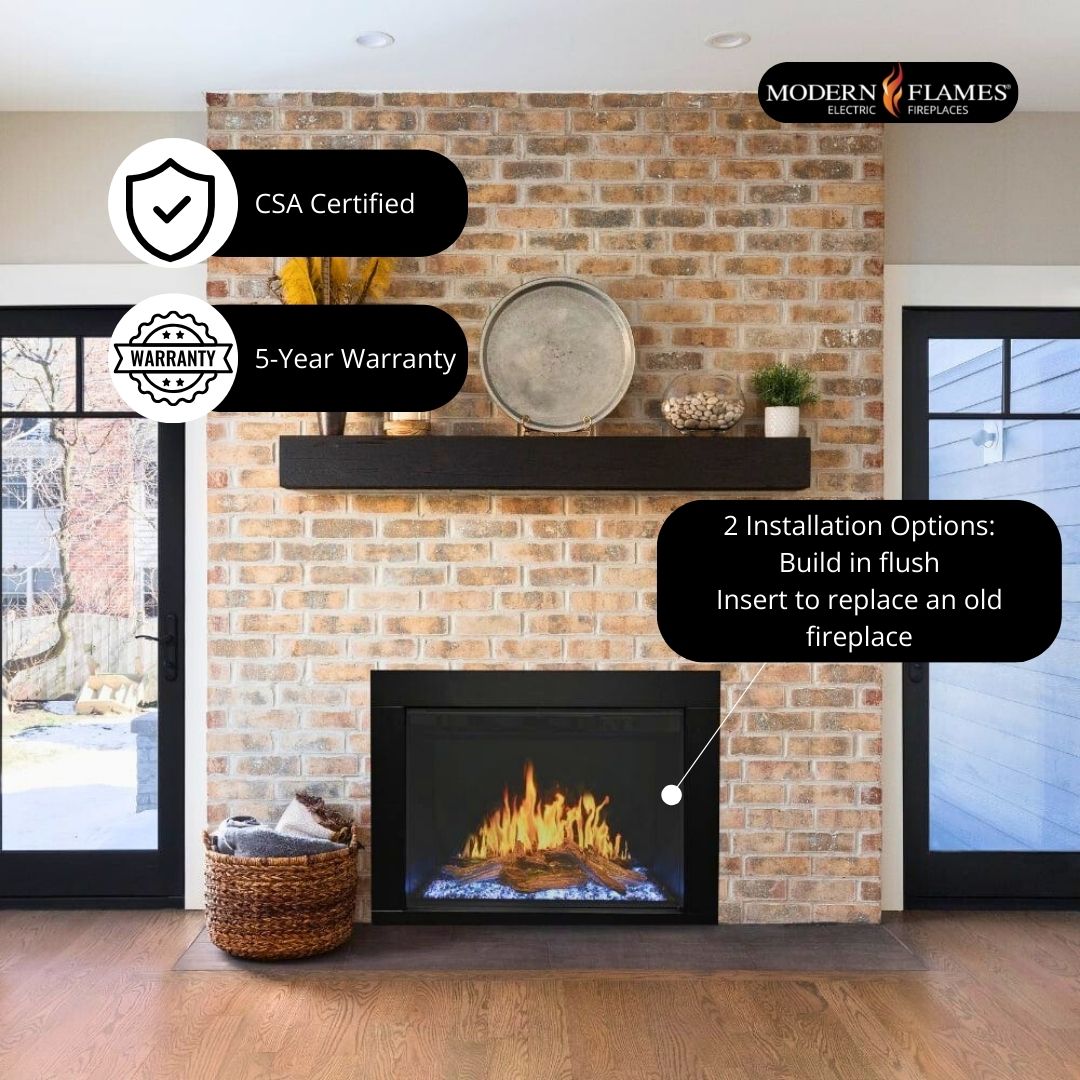

• Certification: CSA Certified

• Warranty: 5-Year Limited Warranty

What’s in the Box

• Electric Fireplace

• Hardware Kit

• Remote Control

• Log Set

• Crushed Glass Media

• User’s Manual
